Wq Series Submersible Sewage Pumps - China

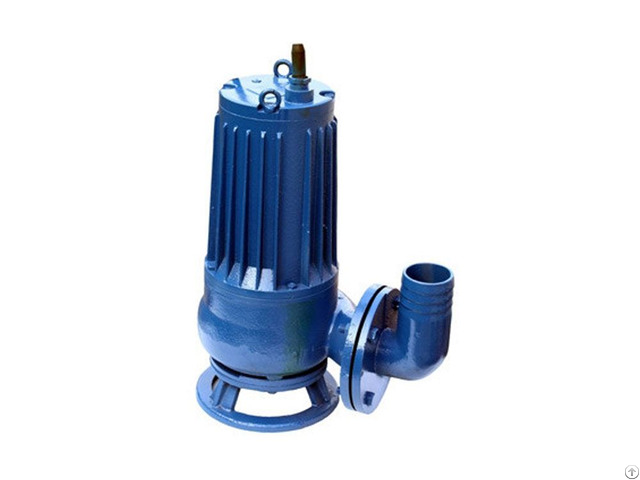

WQ Series Submersible Sewage Pumps

WQS series of deephigh-lift submersible sewage pump is used in Yangtze River Three Gorges Development processfull use of advanced CFD and flow field diagnostics and make a lot of experimental researchdesign and structure of the components in the hydraulic design of a conventional submersible sewage pump break through the traditional design method.

This success of the product to fill a high head sewage pump deep dive blankat advanced international levelalso the hydraulic horizontal centrifugal pump industry in China designed to enhance a new level.

self priming centrifugal pump manufacturer Use and model:

Deep type high lift submersible sewage pump with high head, wear resistant, high reliability, no congestion, automatic installation, automatic control, and can lift all the advantages of working in the high head, large subduction depth, water level changes large amplitude, the carriage with some abrasive media aspects of solid particles with unique features.

Long Teng vertical slurry pump Conditions of Use

1 - The maximum media temperature is +40℃

2 - PH value is 5 to 9

3 - Can be the largest solid particle diameter ∮25-∮50mm

4 - The largest dive depth of 100m

Deep type high lift horizontal centrifugal slurry pump model shows some examples:

WQS190-80-115(example)

Deep type high lift submersible sewage pump

190 m3/h Rated flow m3/H

80 m Rated lift m

115 KW Motor power KW

50-500m3/h, 40-110m, 380V, 50HZ.

The series of centrifugal pumps for sale flow rate range of 50-500m3/h, head range of 40-110m power less than 115KW, Rated voltage of 380V, frequency 50HZ.

Perferred Use:

1 - For larger changes in water level, that is the larger amplitude head on, the pump head with all the safe use of features in the large and small flow areas are set, however.

2 - For the depth of flood situations, th epump can with stand water pressure safe use of 100m.

3 - For small flow and high head sewage occasions, especially for long-distance transport of sewage.

4 - Applicable to the higher silt content in the occasion, the high head sewage pump characteristics of both the slurry.

5 - With high reliability features, eapecially for a major, major projects.

Deep type high lift pump submersible sewage pump coaxial, compact structure.

Fixed wet installation.

Installation system uses automatic coupling device.

Manufacture and installation of high accuracy of the system can be easily installed within 100 meters high and upgrade pump, no installation or maintenance staff to enter pools, fast and convenient and safe!The system uses a special base, fixed to the bottom of the pool, connected with a specific bracket, along the rail down position to reach the export base through the pump weight, automatic coupling seals,
