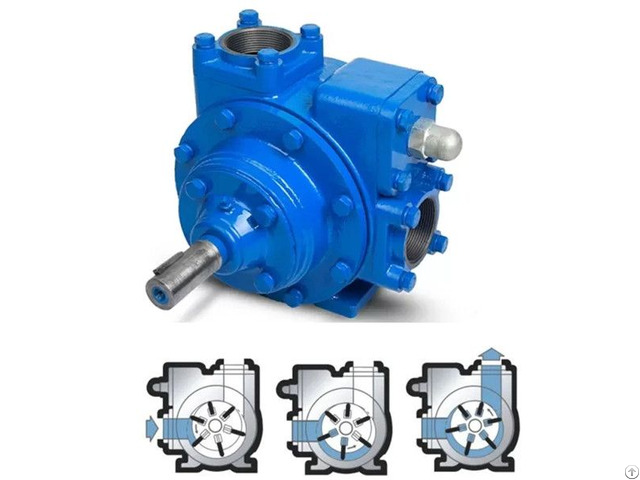

Yb Vane Pump For Fuel Oil - China

YB Self priming rotary vane pump is called sliding vane pump.

It is with internal by-pass valve.

The pump uses a rotor with sliding vanes to drive the liquid transfer delivery.

The material of construction is nodular cast iron with self-lubricating vanes.

Due to its superior performance, the pump can handle viscous and volatile liquid and require less horsepower than other equivalent pumps.

The pump has its obvious advantage in the transmission of high flow at low revolution.

Advantages:

Excellent self-priming and dry run capabilities

Widely application in diesel, gasoline, lubricating oil, heavy oil, etc.

Vanes could be replaced without moving the whole pump makes easy maintenance.

High discharging flow rate and low speed Unique sliding vane pump design self-adjust for wear to maintain flow rates Excellent at self-priming, eliminates expensive priming systems

Extended dry-run capability, eliminates nuisance current monitoring systems

Sliding vane design provides sustained performance and trouble-free operation

Easy maintenance: vanes can be easily replaced without removing the pump from the piping system

High suction lift abilities and line-stripping capabilities to completely empty tanks, and piping of fluid

Low maintenance and low life-cycle costs, pumps are renewable and repairable

Solids handling, provided by large displacement and slow internal velocities

Thin to thick fluid viscosity flexibility, eliminates expensive heating systems

Highly efficient, sliding vane pumps require less horsepower than other pumps, meaning spending less on motors initially and less on electricity to power the pump

Application

Widely used to transfer Fuel oil, Gasoline, Diesel, Jet fuel, Lube oil, Biofuels etc.
