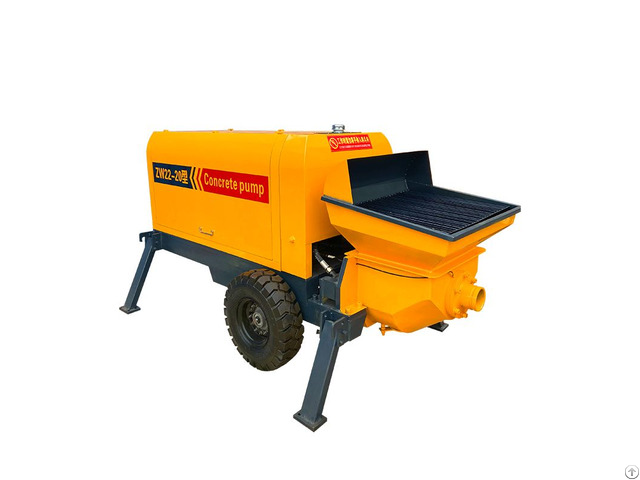

Zw 20 Concrete Pump - China

The new ZW-20 concrete pumps as supplied by Qijiu come in an array of outputs 15 cubic meters per hour over distances of 80m.

Our trailer-mounted concrete pumps offer the ideal solution for placing concrete or shotcrete in hard–to-access areas because of their compact size, they can also be used as an alternative to truck-mounted concrete pumps on larger pours that require a slower output rate.

Electric motor or Diesel motor 2 options.

Concrete output: 8-15m³/h

You can visit our website to get the concrete pump price

Model ZW-20

Concrete output/m³ 8-15

Concrete Pressure/Mpa 11

Hydraulic Pump Output/cc 80

Horizontal Pumping Distance/m 80

Vertical Pumping Distance/m 40

Power 22Kw motor or 40Kw Diesel Engine

Vertical Pumping Distance/mm 120*800

Maxinmun Aggregate/mm 20

Hydraulic Oil Capacity/L 100L

Outlet Size/mm 80

Dimensions/mm 2400*1000*1300

Weight/Kg 1100

Reliable equipment quality Small secondary construction column pumps mostly use dual-pump, dual-circuit open hydraulic systems.

The pumping system is simple, the components have a long service life and high reliability.

Fully enclosed structural electrical control box, protection control device can work under harsh conditions.

The Plc dual system control design simplifies the circuit while significantly improving its reliability and lifetime.

Make the equipment work continuously.

Product use: Effectively solve the problem that the top of the bottom column is difficult to be poured in high quality during the pouring process of the structural column, and the flatness and the perceived quality of the structural column are guaranteed.

It is suitable for high-rise concrete fine stone transportation, construction floor group structure column pouring, high pumping efficiency, pumping system is ten times of manual construction, which effectively improves production efficiency and saves labor cost.

It is secondary structural column pouring.

A good helper.

The secondary construction column pouring machine is small in size, simple in operation, low in labor intensity, flexible in construction on the floor, and can be placed close to the lintel and the pillar.
