F 204783 Excavator Walking Reducer Planetary Gear Bearing - China

F-204783 Excavator Walking Reducer Planetary Gear Bearing Item Number

F-204783 Category

Cylindrical Roller Bearing Double Row

Weight and Dimensions

Inner (d) MM

50

Outer (D) MM

72, 33

Width (B) MM

29

Inner (d) Inch

1.9685

Outer (D) Inch

2.8476

Width (B) Inch

1.1417

Weight (kg)

0.029

Product Properties

Bore

C - Cylindrical Bore

Seal

No Seal

Cage Type

S - Steel or Standard Cage

External Modification

No External Modification

Radial Internal Play

Cn Normal Internal Play

Precision

Standard Precision

Heat Stabilization

No Heat Stabilization - Temperatures up to 120 °C Product description

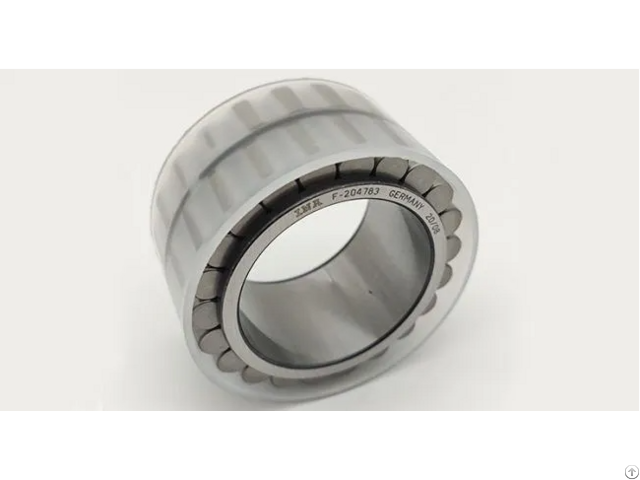

The F-204783 INA is a double-row cylindrical roller bearing.

This bearing has a particularly high radial load capacity.

The design consists of a solid inner and outer ring with a double row of cylindrical rollers with a cage.

The rolling elements are guided between flanges.

This construction enables compact bearing arrangements with high radial stiffness and very high load capacity.

The outer ring is separable from the inner ring, facilitating (dis)assembly.

The F-204783 INA is equipped with a cage that prevents the cylindrical rollers from coming into contact with each other.

This design allows for controlled movement of the rolling elements.

There is less friction than in full-complement cylindrical roller bearings.

As a result, higher rotational speeds are possible, and less heat is generated.
