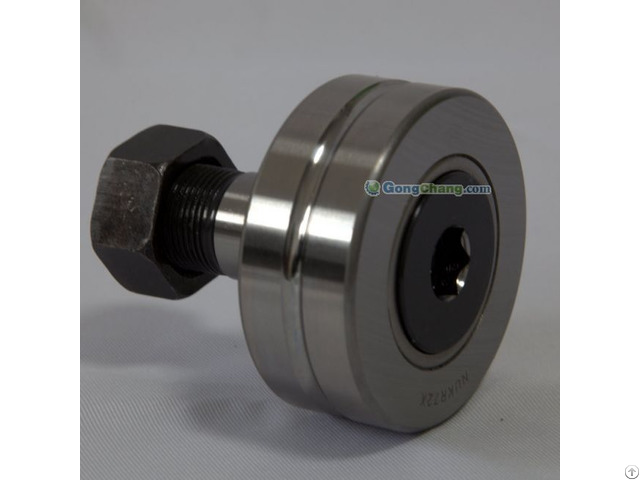

Supporting Track Roller Bearings Nukr 72 X - China

BRS Track Rollers

Track rollers, also called cam followers, are characterized by their thick-walled outer rings that run directly on a track.

The thick outer rings permit high load-carrying capability while minimizing both distortion and bending stresses.

Sealed designs with internal thrust washers help extend service life under conditions of infrequent lubrication.

Sizes: 16 mm - 110 mm (1/2 in.

- 4 in.

) bore.

Designs:

1 - Straddle mounting in a yoke with an inner ring.

2 - Cantilever mounting with an integral stud.

Benefits: High load-carrying capability with minimized distortion and bending stresses.

Extended service life under conditions of infrequent relubrication.

NUKR 72 X Specifications：

D: 72 mm

d: 24 mm

C: 28 mm

B: 80 mm

B1: 49.5 mm

B2: 11.0 mm

C1: 1.3 mm

D2: 44 mm

Technical parameters：

Cr: 44.5kN

Cor: 60.0kN

Fr: 32.0kN

For: 60.0kN

Limiting speed: 2100 rmp

Nut tightening torque: 220 Nm

Application:

Cutting machine, weaving machines, stretch sewing machine, package edge machine, Ram support rollers, embroidery machine, button sewing machine, bag opening machine, thick feeder, high truck, material handling and indexing equipment

BRS FULL COMPLEMENT NEEDLE ROLLER BEARINGS

Full complement needle bearings have a through hardened outer ring which permits high static and dynamic load capacities and an ability to withstand overloading, shocks and vibration.

They are particularly

suitable for operations involving oscillating motion but may not accept

high speed conditions where good alignment is necessary.

Product Range:

1 - Heavy-duty Needle Roller Bearings

2 - Track Rollers

3 - Thrust Bearings

4 - Combination Bearings

5 - Drawn Cup Roller Clutches

Material:

Outer Ring & Inner Ring

1 - Bearing Steel

2 - Machined

3 - Heat Treatment (Hardness HRC 58~63)

Cage

1 - ST12 Carbon Steel

2 - Drawn

3 - Heat Treatment (Nitrocarburizing, Blackening)

Needle Roller

1 - GCr15 Bearing Steel(52100, 100Cr6)

2 - Grinding

3 - Heat Treatment (Hardness HRc60-64)

Precision Rating: ISO P6/P5

Certification: ISO9001: 2000

Packaging: Export Standard

Delivery Time: 5 days for general products, 50 days for customized products.

Loading Port: China Port
