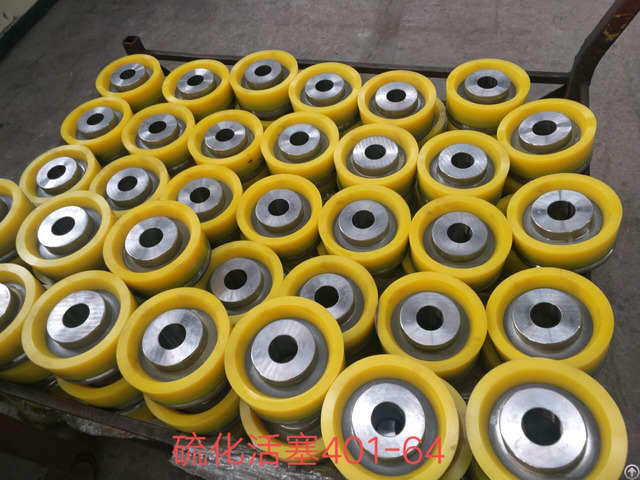

Api 7k Drilling Mud Pump Polyurethane Piston - China

FEATURES:

*Forged &World Top Class Heat Treated Piston Hub, AISI 5140 / 4140/ 4135(40Cr / 42CrMo / 35CrMo)(Or customized material)

*Flex Lip Type, Single Durometer

*Bonded Piston Type Benefits:

1)Increased structural strength with very high tensile strength for longer operation life, 2)Improved shock absorption and minimized shock when piston moves, 3)Enhanced sealing capabilities and sealing failure prevention via Reduced possibility for fluids to penetrate between the polyurethane insert and the piston hub

*USA Imported raw material Polyurethane with:

Extrusion/Abrasion Resistance: Good

Chemical/Corrosion Resistance: Good

Temperature Resistance: Maximum 220F(105C)

Pressure Resistance: Maximum 5000 Psi

*LGS Handle Application: Perfect when<10%

*WBM PPG Application: Perfect for all conditions

*Liner Application: Zirconia, Metal

*Misalignment Handle Application: Very Good

*Drilling Fluid Application:

Perfect for Water Based Mud(WBM), Synthetic Based Mud(SBM), Emulsion, Clear Water Not Recommended for: Oil Based Mud/Salt Water/Sea Water

*Polyurethane Color: Red/Orange/Yellow

*Shelf Life: Perfect(<24 months, under proper storage condition)

*Long Service Life Exceeding API Standard

*Bonded NBR/HNBR Rubber Piston as customized options

*Fully interchangeable with major piston types, Available Size: 3”(75mm)--8”(200 mm), Series A, B, K, L

*Product Series:

HNA-FE-P-BFRC: HNA Bonded Piston Flex Lip R Type, with Chinese High Quality Polyurethane, Available Size: 3”(75mm)--8”(200 mm), Series A, B, K, L

Customized Specific Design &Series of HNA Bonded Piston Assembly Flex Lip R Type, With/Without Polyurethane/N- BR/HNBR, API/Non-API Standard
