Industrial High Brightness Tft Lcd Panel 13 3 Inch - China

price: contact company for price

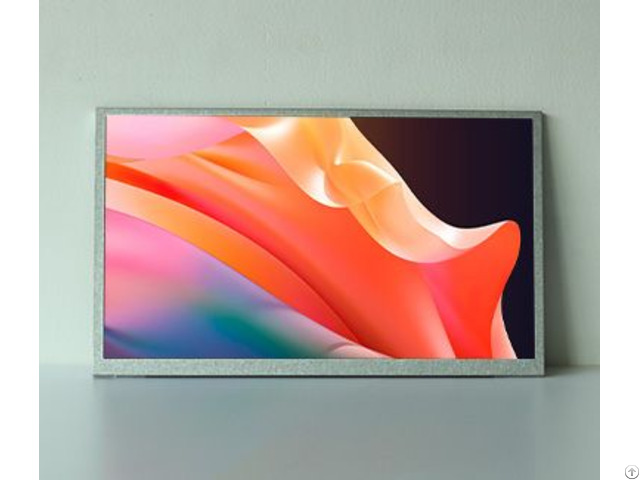

Industrial High Brightness Tft Lcd Panel 13 3 Inch

Products Photos Catalog Industrial Brightness Photos Catalog

Screen Diagonal 13.3 inch

Brand Risingstar

Model No RS133HAN-GE10

Active Area 293.472(W)×165.078(H) mm

Resolution 1920(RGB)×1080, FHD, 166PPI

Physical Size 309.7(W)×184.1(H)×10.1( D) mm

Pixel Arrangement R.G.B.

Vertical Stripe

Display Mode a-Si TFT-LCD, LCM

Contrast Ratio : 800: 1

White Luminance ( Center ) 1000 cd/m2 (Typ.

) [cd/m2 ]

Optical Response Time 25 (Typ.

)(Tr+Td) ms

Nominal Input Voltage 3.3V (Typ.

)

Frame Rate 60Hz

Viewing Angle 89/89/89/89 (Typ.

)(CR≥10)

Weight [kg] 7(Typ.

)

Interface Type LVDS (2 ch, 8-bit), 30 pins

Support Color 16.7M, 90% NTSC

Operating Mode AHVA, Normally Black, Transmissive

RoHS Compliance RoHS Compliance

Temperature Range -20 ~70 °C

Storage (Non-Operating) -20 ~ 70 °C


Company Contact:


  • Phone: 13751187573

  • Address: Guangdong province, China, shenzhen city, 广东省 , China

  • Email: Email


Published date: March 23, 2024

  • Business Description: LCD OUTDOOR AND INDOOR DISPLAY ; LCD high brightness panel: LCD waterproof monitor; LCD factory; Sizes from 10.1 inch to 98inch; Brightness from 350nits to 5500nits; Own design LED backlight; Own design Aluminum structure
