Ride On Type Concrete Power Trowel - China

china coal 0001

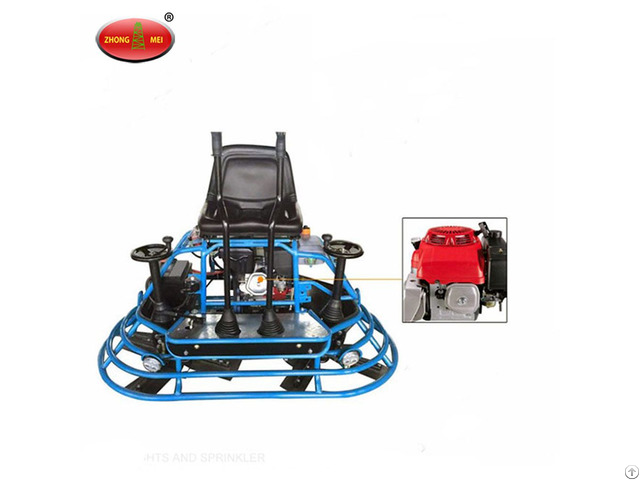

Introduction of Ride On Type Concrete Power Trowel

1 - Ride on type concrete power trowel, greatly reducing the labor intensity and improve work efficiency.

2 - Installed two simultaneous disk wiping, quick to mention pulp.

3 - The two-way ten lobes with the weight of 400kg could reach better compaction effect to the concrete ground.

4 - Mechanical steering operating system, responsive, easy to operate, and comfortable.

5 - With variable gear, high-grade smear speed of up to 160 rev / min to make light yield faster, better, low-grade pulp can wipe disk mention more powerful.

6 - Equipped with high-horsepower electric start engine, to provide a strong and reliable power.

7 - A safety shut-off switch that can rapidly turn off the engine, to ensure safety.

8 - The control screw to adjust the blade angle.

9 - Sprinkler and lighting designed to facilitate construction.

10 - Fitted with a lift walking round, easy to change smear, for wiping the disc as well as walking.

Parameter of Ride On Type Concrete Power Trowel Model YM-90

Power Honda GX690 24HP

Blade size 310*150*2mm

Blade quantity 10

Blade pitch 65-120mm

Disc diameter 900mm

Dimension 1900*950*1180mm

Total weight 430kg

Rotational speed 140r/min-180r/min

Operating mode Driving type

Starting system Electric start

Fuel Tank Capacity 20L

Lubricating oil volume 1.5L

Engine type Two cylinder oil air-cooled

Automatic water spray Yes

Construction lighting Yes

Walking wheels Lift type
