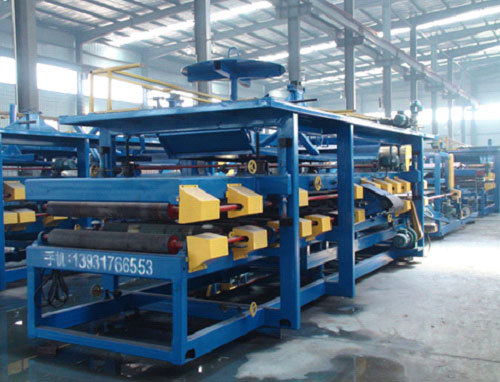

Sandwich panel roll forming machine imported key points

Sandwich panel roll forming machine in the present

application, there are a lot of attention in the import when

buying, the parameters of the sandwich plate roller pressure

molding machine is a very important point:

sandwich panel roll forming machine roller station: 15

rows

sandwich panel roll forming machine roll material: Use

Cr12mov die steel

sandwich panel roll forming machine heat treatment: Roll

mould all by heat treatment hardness to HRC 58-600

Sandwich panel roll forming machine spindle materials:

using 45 # steel, the quenched and tempered treatment

Sandwich panel roll forming machine memorial gateway

structure: A3 plate integral memorial gateway 30 mm thick

Sandwich panel roll forming machine drive way: chain

transmission, chain sprockets all high-frequency processing

Sandwich panel roll forming machine transmission power:

15 kw cycloid needle machine

Sandwich panel roll forming machine: the frame structure

of using 400 type beams monolithic welding

Sandwich panel roll forming machine cutting way:

hydraulic automatic cutting

Sandwich panel roll forming machine cutting power: 7.5 kw

Sandwich panel roll forming machine blade material: Used

Cr12 steel

Sandwich panel roll forming machine Knife mold treatment:

After the heat treatment hardness of HRC 60-620

Sandwich panel roll forming machine Knife mold

processing: After heat treatment of processed by grinding

machine, wire cutting, etc

Sandwich panel roll forming machine control system: PLC

computer control system

Sandwich panel roll forming machine speed adjustment

mode: Vector type frequency control of motor speed

Sandwich panel roll forming machine Forming speed :

10m/min

Sandwich panel roll forming machine forming material :

1.2-3.0mm

Sandwich panel roll forming machine specifications:

change the mold to produce 10 # - 300 # C profile steel

Sandwich panel roll forming machine parts: 3 t manual

feeding frame, cut off the mold, carrier aircraft
