Telescopic Universal Joints - China

Telescopic universal joints contain a telescopic intermediate element that allows for simpler and faster repositioning compared to double universal joints.

The length can be easily adjusted in axial misalignment.

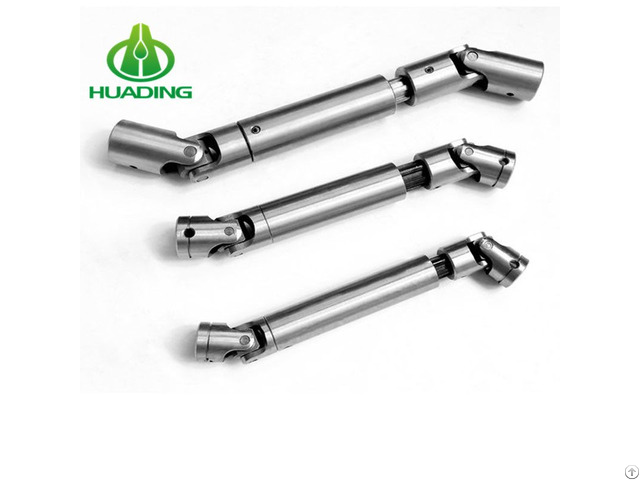

Telescopic Universal Joint Description

A telescopic universal joint consist of two gimbals, essentially an extended double joint that addresses distance and offset issues between the driver and driven load.

HUADING telescopic universal joints are available in a variety of sizes, with heat and corrosion resistance, and we can provide shorter or longer lengths for special orders.

Advantage:

1 - Low life-cycle costs and long service life;

2 - Increase productivity；

3 - Professional and innovative solutions；

4 - Reduce carbon dioxide emissions, and environmental protection; Model:

WSP Type Universal Joints

· D: 22mm - 95mm

· d1, d2 (H7): 10mm - 50mm

· L2: 48mm-190mm

· Max rotate speed reach 4000r/min

Features:

1 - It is suitable for transmission coupling space on the same plane of two axis angle beta β≤45°, the nominal torque transmission 11.2-1120N.

2 - The WSD type is a single cross universal coupling, and the WS type is a double cross universal coupling, the WSS type is a telescopic universal coupling.

3 - Each section between the largest axis angle 45º.

4 - The finished hole H7, according to the requirements of keyseating, six square hole and square hole.

5 - The angle between the two axes is allowed in a limited range as the work requirements change.
