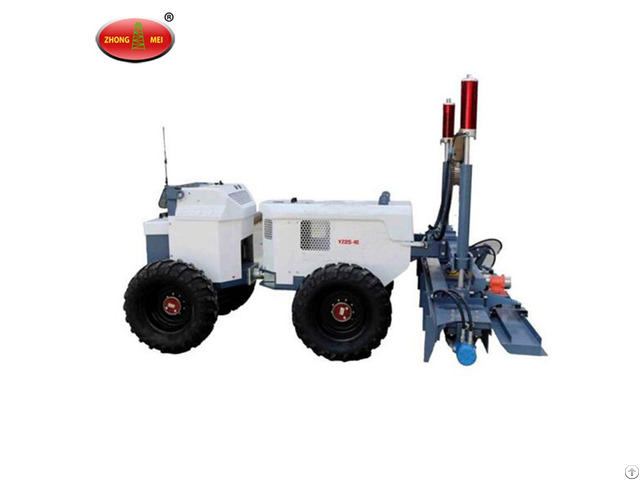

Introduction of YZ25-4E Concrete Laser Screed Machine

YZ25-4E Concrete Laser Screed Machine adopt Kohler CH940 Type Gasoline Engine, air-cooled 4-stroke, double cylinder Power 32.5 Lubricant 2.75 Fuel tank capacity 34 Leveling system Flat head Way fixed flattening width 2500 paving way stirrer paving paving thickness

Second, product characteristics

1, lightweight body design: through the extensive use of aluminum, plastic, carbon fiber and other light materials, making the weight of the car to reach the lightest domestic and foreign models.

In the specific use, this model compared with similar models at home and abroad, the most obvious advantage is: As the fuselage light weight, can be widely used in high-rise floors and other places on the load requirements of strict construction.

2, line remote control technology: domestic first four rounds of wireless remote control technology development, so that the model in the construction efficiency, compared to similar models at home and abroad have increased significantly.

Independent research and development, the laser system and remote control system for a seamless seamless docking, a substantial increase in this type of control performance.

3, automatic construction mode: through the laser system, remote control system and hydraulic system, the perfect integration, to promote the model in automatic mode to achieve fully automatic construction capability.

4, the radial force cylinder to improve the problem: laser leveling machine work device in the left and right to enhance the cylinder, the construction process is not only bear the axial load imposed by the working device, but also to withstand the radial load of concrete, seriously affecting the construction accuracy, At the same time seriously accelerated the damage to the cylinder.

This model effectively improves the above-mentioned problems by carrying out hollowing process on the cylinder lever and improving the guide ring and the sealing ring of the oil cylinder.

Parameter of YZ25-4E Concrete Laser Screed Machine

Product name YZ25-4E concrete laser screed machine

Walking model Wheeled type

Engine model Subaru Robin EH72

Type of gasoline air-cooled 4-stroke, double cylinder

Power 25HP

Lubricant quantity 1.55

Fuel tank capacity 20L

Flattening the flattening of the leveling system

Flatten width 2500MM

Length x Width x Height (mm) 2890 * 2915 * 1675 mm

Paving thickness 60-300 mm

Turbo power low speed high torque cycloid hydraulic motor

Vibration system control method vibration motor

Excitation force 500 N

Vibration frequency 50HZ

Laser system laser system control mode microcomputer laser scanning

Laser system control effect plane, slope, double slope (three-dimensional)

Wheel inflatable wide tires

Speed 0-45 m / min

Mode of operation None

Forward and backward remote control

Cleaning system power, external motor

Theoretical flow 20 L / min

Rated pressure 7 Mpa

Weight 650KG
