Fareast Ball Mill Liner - China

We can supply many types of Ball Mill Liner made of various Material

for cement and mining industries, etc, based on the detailed

technical requirement provided by customers and/ or users, including

Drawing, Material Standard ( main materials listed below) , Unit

Weight and Quantity.

C.

HIGH CHROME CAST WHITE IRON:

Material Standard Composition % Hardness

KmTBCr15Mo2 Cr 13- 18, Mo 2.5 max 53 HRC min

KmTBCr20Mo2 Cr 18- 22, Mo 2.5 max 58 HRC min

KmTBCr26Cr 23- 28, Mo 1.0 max 55 HRC min

D.

ALLOYED STEEL:

Material Standard Composition % Hardness Impact

ZG40Cr5MoRE C 0.35- 0.45, Cr 4.5- 5.5, 48 HRC min 20 J/ cm2 min

ZG40CrMoNiRE C 0.3- 0.5, Cr 1.2- 1.8 40 HRC min 30 J/ cm2 min

ZG20Cr9NiMo C 0.15- 0.35, Cr 8- 10 40 HRC min 40 J/ cm2 min

ZG45Cr3NiMoMnRE C 0.4- 0.5, Cr 2.0- 3.2 50 HRC min 20 J/ cm2 min

ZG90Cr6MoMn C 0.85- 0.95, Cr 5- 8 50 HRC min 7 J/ cm2 min

Company Contact:

• Posted By: Fareast Steel Balls Trading Ltd

• Phone: 8615205638398

• Address: Room 307, Building No. 1, Lubao City Garden Block-, ningguo , China

• Email:

• Business Description: Fareast Steel Balls Trading Ltd. (FAREAST for short) is a professional provider of the following products and services applied in cement plants, mines, steel mills, and coal firing generation plants, including but not limited to:

  --- Steel Balls (low or high chrome cast grinding balls, forged steel balls, hot rolled steel balls, stainless steel balls, steel cylpebs),

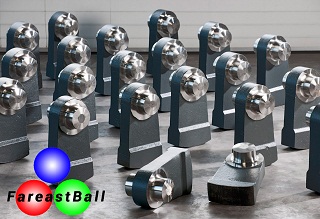

  --- Steel / Iron Castings made of various materials (ball mill liners, crusher hammers, jaw plates, crusher mantle, incinerator grate, nose ring segment, cooler grate plate, etc)

  --- Spare Parts for mines,

  --- Equipments (ball mill, crusher, steel balls production line),

  The quality products we provide are guaranteed with low wear rate and long life time at reasonable price, based on the following advantages FAREAST is more professional, effective and approachable to customers and users worldwide:

  --- An experienced and professional team working in the field for more than 15 years,

  --- Long-term and stable partnership with top specialized manufacturers in China,

  --- One stop services available besides products supplied,

  --- Delayed delivery would never happen.

  Our Products:

  - low chrome cast balls

  - high chrome grinding media ball for mining

  - high chrome cast cylpebs

  - hot rolled steel balls

  - forged steel balls
