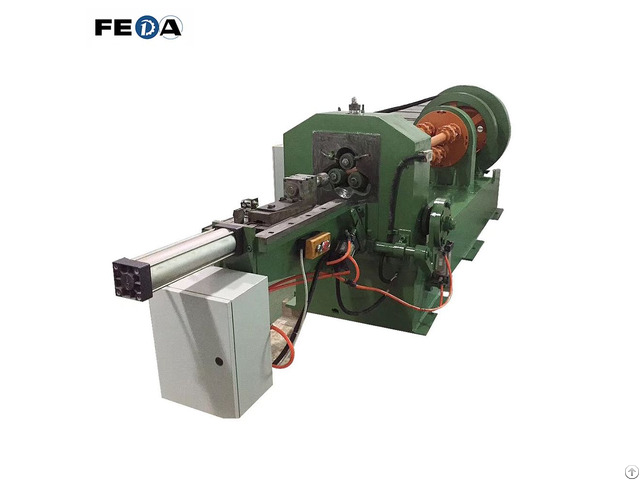

Fd 30d Railway Bolts Thread Rolling Machine - China

1 - Hot rolling with intermediate frequency heating furnace

2 - Automatic feeding by robot

3 - Speed can be adjustable

4 - Only need 5-8 minutes to change rolling dies

5 - CE, ISO9001-2008

6 - Three rollers to keep precision shape Specification

Working diameter 12.7-27mm

Range of pitch rolled 6-13mm

Length of thread rolled Max.

300mm

Spindle speed 280rpm Outside diameter of rolling die 80.5mm

Inside diameter of rolling die 39mm Thread rolling die length 60mm

Output(pcs/min) 10-15(pcs/min)

Main power motor 22KW

Supply voltage AC380V / 50Hz

Weight(reference) 3900KG

Motor Dimension 110*130*90mm

Machine Dimension(L*W*H) 4100*1100*1300mm Q1 - Are you factory or trading company ? A1 - We are factory of manufacturing thread rolling machine and dies by ourselves.

Welcome to visit our factory, if possible.

Q2 - What is the delivery time ? A2 - Usually 15-25 working days for machine, and 10-15 working days for dies.

Q3 - What is the warranty time for machine? A3 - Usually 12 months from B/L date.

Q4 - What is the payment term? A4 - T/T, Western Union, Money Gram, Alipay, PayPal.

50% as deposit, and 50% before shipping.

Q5 - Is it possible to design and produce automatic loading & unloading devices? A5 - Yes, Engineer can design special auto feeding device according to your products.

But please provide the drawing of your products before that.

Q6 - How will you solve problems that we face during using your machine? A6 - A.

Please provide necessary videos and pictures that can show the problems, our engineers will check and give corresponding solutions.

B.

Will arrange engineers to solve problems at the scene, if possible.

WhatsApp&Phone: +86-13312913043 QQ: 3833890347 Wechat: szfeda06

Company Contact:

• Posted By: Feda Industry Co., Ltd

• Phone: 13312913043

• Address: Songgang Street, Shenzhen , China , China

• Email:

• Website: https://www.szfeda.com/

• Business Description: Thread rolling machine, thread rolling dies, screw making machine, flat die thread rolling machine, thread rollers, thread rolling machinery, auto lathe machine, tapping machine, heading machine, bolt and nuts, thread rods
