Double Station Apg Clamping Machine - China

HAPG-860-2

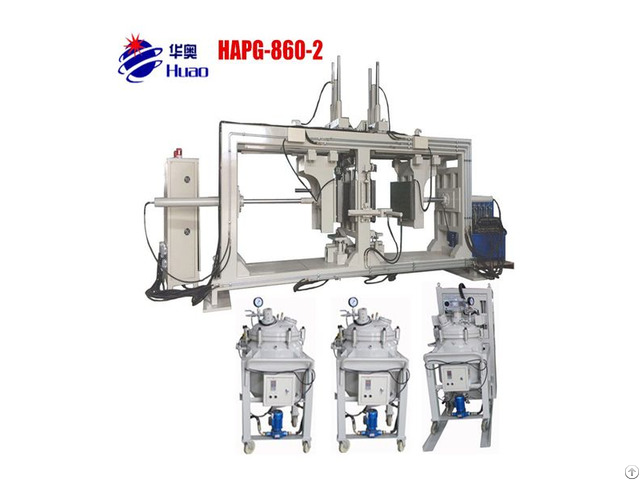

Double-station APG Clamping Machine

Application

This machine is designed with 2 work station, clamp plate size is 600*800mm, support 2 moulds work on same machine, greatly improved the efficiency, it is special used for produce simple designed products, bushing and sensor.

Machine Technical Parameters

Model No.

HAPG-860-2

clamp plate size 600*800mm

clamp force 18T

Min Max clamp plate stroke 240*1250mm

Upper&lower core puller stroke 760*350mm

Heating power 24kw

hydraulic power pack 7.5kw

Horizontal tilting angle 0-5°

mould load weight 2T

Machine weight 7500KG

Machine dimension 7300*1300*3100mm

Excllent aftersales services:

1 - Have 23 year's experience of electric products production technology engineers to your company provide free technology training and help customers make the qualified products.

2 - Have rich experience engineer to be responsible for new equipment storting to installation debugging and training.

Competitive ability of production:

Well equipped with complete facilitiesand more than 200 skilled workers and operates round the clock on three shifts, so we can keep the orders completed punctually! Update the details:

1 - Specially designed for transformer of thin film degassing and cycle heating system mixing device, greatly improving the uniformity of mixing and pumping vacuum material.

2 - Combination of equipment, moulds, as well as under the engineers constantly summarize and improve the production equipment has superior performance, high efficiency energy saving etc.

3 - By APG pressure gel molding process, greatly improving the production efficiency, increased the product surface bright and clean degree, reduce the mold cost, reduces the labor costs of inputs.

4 - One-stop services for electric factory, we are manufacturer APG Clamping Machine, APG Mould, Oven for APG Processing, Testing Equipment, Epoxy Resin Material, Silicon Material, Release Agent, Winding Machine for CT&PT, Foil Winding Machine for Transformer, Laser Marking Machine can marking all kinds of materials, like epoxy resin.

Company Contact:

• Posted By: Huaao Electeonic Technology Co.Ltd

• Phone: 13362028128

• Address: NO.6-3 ruzhu road,fuzhu pack,, sidu town,Jiangshan,quzhou, zhejiang, china, jiangshan , China

• Email:

• Business Description: The only supplier for apg machine, molds and techinique training overseas

  technique consult service, mixing plant, raw material, molds, winding machine, sample production
