Welding Positioner - China

price: 50000.00 Dollar US$

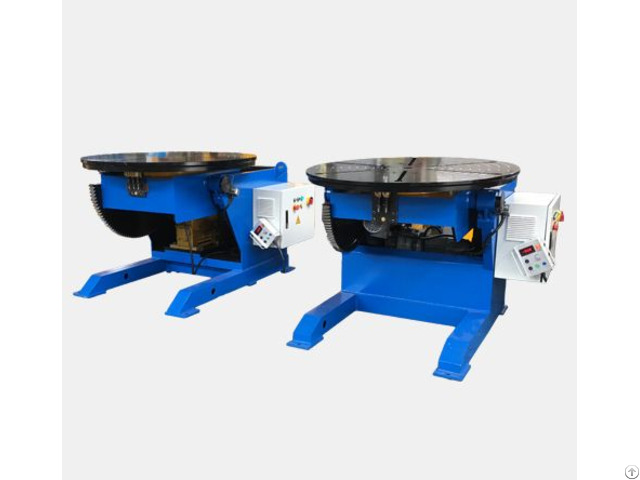

Welding Positioner

Products Photos Catalog Welding Positioner Photos Catalog

Welding position is an equipment to carry bellow and flange when welding them together.

Spec HB-1 HB-3 HB-6 HB-10 HB-30 HB-50 HB-100

Loading weight (kg) 100 300 600 1000 3000 5000 10000

Table turning speed(rpm) 0.4-4 0.2-2 0.1-1 0.05-0.5 0.05-0.5 0.05-0.5 0.02-0.5

Table overturn speed (rpm) manual 0.8 0.8 0.5 0.25 0.15

Table diameter (mm) 400 600 1000 1200 1400 1500 2000

Table overturn angle (°) 0-90 0-105 0-120 Motor power(KW) Turning 0.09 0.18 0.35 0.75 1.1 2.2 3 overturning 0.37 0.75 1.1 1.5 4

Speed adjustment FC Step less speed Max center gravity distance (mm) 150 150 200 200 300 300 400

Max eccentric distance (mm) 100 100 150 150 200 200 200

Over turning 90°max diameter (mm) 600 800 1200 1500 1600 1800 2500


Company Contact:


  • Phone: 8615243460701

  • Address: No.20, Liupanshan Road, Qinhuangdao City, China, Qinhuangdao , China

  • Email: Email


Published date: February 28, 2023 - Modified date: March 9, 2023

  • Business Description: Qinhuangdao FUGE Science & Tech Co., Ltd here, supply hose and bellow

    machine for nearly 10 years.

    Hope to find a way to cooperate with you.

    Main customers: German Witzenmann, EagleBurgmann, Flextech Ind, etc.

    Features: Siemens or Beckhoff control system(CNC motor), PLC touching screen for inputting specification.

    The machine will finish production automatically.

    Quality: ISO9001, CE

    Products Lists:

    1 - Expansion joint machine series:

    Automatic punch expansion joint forming machine DN100 7000mm

    Bellow re rolling machine

    Tube expander

    Rubber expansion joint forming machine

    Rectangular rounded corner bellow machine

    2 - Flexible hose series:

    Continuous annular hose machine DN6 350

    Spiral hose machine DN8 50

    Tube mill and seam welder

    Segmented spiral hose forming machine

    Braiding machine

    Our products has been exported to German, USA, UAE, British, India, Indonesia, Vietnam, Italy, Korea, Singapore, Russia, Spain and so on.
