3m3 Microbulk Tank - China

3m3 microbulk tank

Storage Cryogenic Microbulk Tank Liquid 5M3 Micro Tank, Cryogenic Microbulk Tank

1000L/1.6/2.6/3.4MPa Lar Lo2 Ln2 LNG Lco2 Microbulk Liquid Storage Tank

High-Pressure Storage & Transportation Equipment.

DSW’s complete bulk system solution package ensures quality liquid or gas to keep your processes operating at peak efficiency.

Built for long-term integrity and industry-leading efficiency, these systems deliver optimal performance at reduced operating costs.

Category: 5M3 Microbulk Tank

Tags: 5M3 Microbulk Tank, Cryogenic Microbulk Tank, Microbulk Tank

Description Additional information

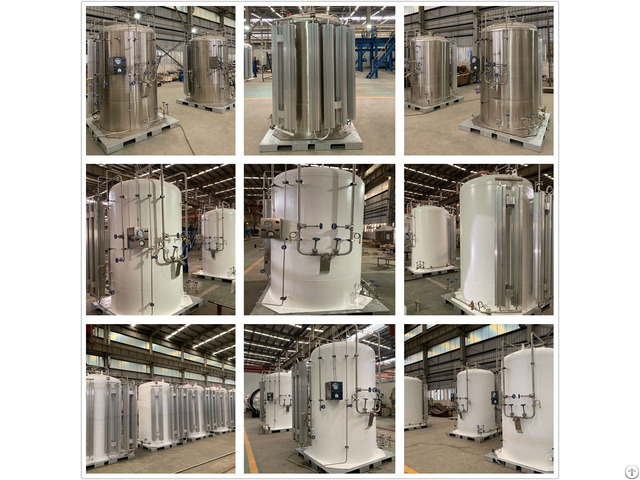

5M3 Cryogenic Microbulk Tank

DSW’s MicroBulk gas delivery system, known as the efficient solution for uninterrupted gas supply, revolves around the concept of MicroBulk gas storage and distribution.

It caters to customers who require a gas consumption level that surpasses the capacity of liquid dewars but falls short of bulk applications.

This cost-effective approach simplifies the distribution process, enhances operational efficiency, and minimizes overall expenses.

Cryogenic Microbulk tanks can be widely used in various industries, such as laser processing, electronics, scientific research, chemical engineering, welding, medicine, and food.

DSW’s Mini Bulk Service brings the advantages of bulk supply to smaller users of nitrogen, oxygen, argon, and carbon dioxide.

By choosing this gas supply solution, you can avoid swapping full for empty cylinders with all its associated hassles and inconveniences.

MicroBulk Tank systems are available for oxygen, nitrogen, argon, carbon dioxide, nitrous oxide (N2O), LNG & in high pressure, high-flow applications, including laser cutting, metal processing & fabrication, precision welding, laboratory & research, medical oxygen, food & beverage packaging/preservation, electronics manufacture & testing, & inert purging & blanketing.

Nitrogen MicroBulk Tank, Mini bulk Tank Specifications

Model: CDLS-1/1.6 Insulation type: Multi-layer

NO Items Inner vessel Outer vessel

1 Design pressure MPa 1.68 -0.1(outer)

2 Working pressure MPa 1.6 -0.1(outer)

3 MAWP MPa 1.68 /

4 Design temperature ºC -196 -19~50

5 Working temperature ºC ≥-196 normal

6 Strength pressure MPa 2.7 HLD

7 G.

Vol m3 1.06 0.88(interlayer)

8 E.

Vol m3 1 /

9 Medium LIN/LOX/LAR Multi-layer

10 Main material S30408 S30408

11 Treatment Pickling and passivation Sanding (Sa2.5)and coating

12 Corrosion allowance mm 0 0

13 Joint efficiency 1 0.85

14 Filling rate 95% /

15 Static evaporation %/d LN2≤1.0; LO2≤0.625; LAR≤0.68

16 Seal off vacuum degree Pa ≤0.01

17 Interlayer seal leakage ≤1×10-8

18 Diameter mm Φ900 Φ1104

19 External Dimensions mm Φ1104×2444

20 Type Vertical

21 Tare weight Kg ~986

22 Fully loading weight Kg 2396(LAR);

23 Design service life 15years

24 Open pressure for safety valve 1.68Mpa

25 Medium max density kg/m3 1410(LAR)

26 The thickness of the coat, um /

27 Ex-work pressure of inner 0.03Mpa

28 Design code GB

5M3 Microbulk Tank, Cryogenic Microbulk Tank What is Microbulk?

Microbulk is an innovative compact mini bulk tank storage system or a bulk storage system in miniature.

A Microbulk delivery system replaces high-pressure or liquid cylinders with an affordable stainless steel, low-pressure storage tank that ranges from 230 to 5, 500 liters based on your gas needs and volume requirements.

5M3 Microbulk Tank, Cryogenic Microbulk Tank Bulk Gas Supply System for medium gas consumption

MicroBulk from DSW offers cost-effective gas packaging options if you require more than 20 cylinders monthly and under 150, 000 SCF of air, carbon dioxide, nitrogen, or oxygen per month.

Reimagine your gas supply and reach your goals through their nationwide footprint with MicroBulk gas and storage solutions from DSW – available as MicroBulk gas solutions from MicroBulk gas storage solutions from DSW.
