Replacement Screens for FLC 2000 / 48 × 30 Shale Shaker – PMD

Technical Parameter Material: stainless steel 304/316/316 L.

Construction Type: PMD (pyramid).

Wear Mesh Shape: rectangle.

API RP 13 C Designation: API 20–API 325.

Size: 1050 × 695 mm.

Weight: 5.6 kg.

Series: DX, DF, HP optional.

Color: green.

Package: 2 pcs per carton, packed in wooden case.

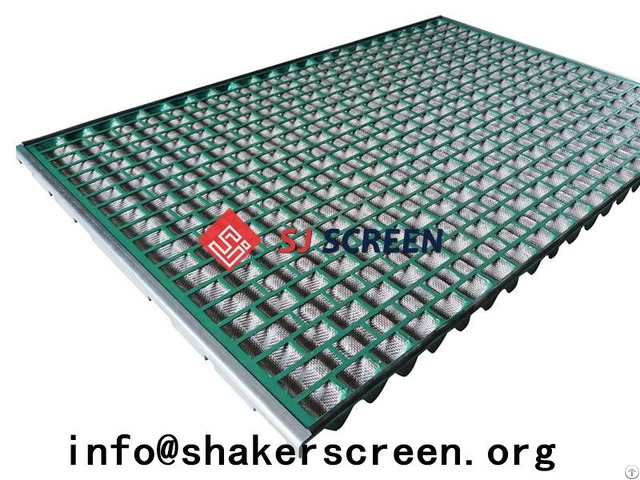

Replacement shale shaker screen for FLC 2000/48-30 PMD.

SJ-PMD 2000 shale shaker screen is manufactured based on the innovated design of Corporation.

This type of shaker screen is constructed of multiple layers of stainless steel wire mesh cloth with different densities.

Arrange these layers reasonably and exactly, the finished shale shaker screen with revolutionary three-dimensional corrugated screens structure.

Pyramid screens offer 125% to 150% usable areas of traditional flat multi-layered screens.

And the fluid capacity also has been increased.

Adaptable Shale Shaker Model SJ-PMD 2000 shaker screens are used as the substitute screen for FLC (Flo-Line Cleaner) 2000 3-panel shaker.

FLC (Flo-Line Cleaner) 2000 4-panel shaker.

48-30 shale shaker.

FLC (Flo-Line Cleaner) 2000 series mud cleaners.

FLC Plus, FLC with AWD, HI-G dryer.

Competitive Advantage

API RP 13C (ISO 13501) compliant.

Resistant to corrosion, high temperature and collision.

Larger area and higher conductance.

Increase shaker capacity and reduce mud loss.

Scientific & reasonable cost control system for competitive price.

Higher flow rates without sacrificing cut point integrity.

Adequate inventory in the shortest time to meet customers' demand.

Warranty Period: 1 year.

Working Life: 400–450 hours.

Performance Parameter

Download Catalogue

Screen Designation Mesh Type API RP 13C Designation Conductance Number D100 Separation (microns) Layer No.

Non-Blank Area (sq.

ft)

SJ-PMD 2000-A325 DF API 325 0.39 44 2/3 8.3

SJ-PMD 2000-A270 DF API 270 0.67 57 2/3 8.3

SJ-PMD 2000-A230 DF API 230 0.71 68 2/3 8.3

SJ-PMD 2000-A200 DX API 200 1.32 73 2/3 8.3

SJ-PMD 2000-A170 DX API 170 1.34 83 2/3 8.3

SJ-PMD 2000-A140 DX API 140 1.89 101 2/3 8.3

SJ-PMD 2000-A120 DX API 120 1.89 134 2/3 8.3

SJ-PMD 2000-A100 DX API 100 2.66 164 2/3 8.3

SJ-PMD 2000-A80 DX API 80 2.76 193 2/3 8.3

SJ-PMD 2000-A70 DX API 70 3.33 203 2/3 8.3

SJ-PMD 2000-A60 DX API 60 4.1 - 268 2/3 8.3

SJ-PMD 2000-A50 DX API 50 5.17 285 2/3 8.3

SJ-PMD 2000-A40 DX API 40 8.64 439 2/3 8.3

SJ-PMD 2000-A35 DX API 35 9.69 538 2/3 8.3

SJ-PMD 2000-A20 DF API 20 10.88 809 2/3 8.3

* D100: Particles this size and larger will normally be discarded.

* API: Corresponding API sieve equivalent as per API RP 13C.

* Conductance No: This represents the ease with which a liquid can flow through the screen.

Larger values represent higher volume handing.

Show Details

The back side picture of replacement shale shaker screen for FLC 2000/48-30 PMD.

FLC 2000/48-30 PMD back view The close picture of replacement shale shaker screen for FLC 2000/48-30 PMD.

Pyramid structure The close up picture of replacement shale shaker screen for FLC 2000/48-30 PMD.

Rectangular perforated wear frame Remarks: , FLC 2000, PMD, DX, DF, HP are marks of Corporation.

ShengJia only produces the replacement screens but not original from .
