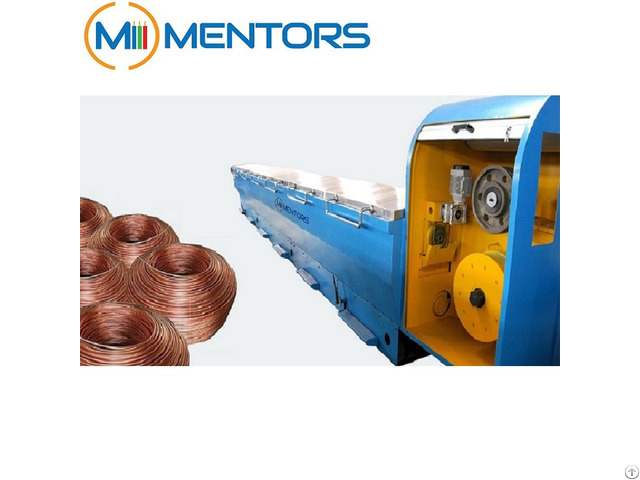

High Speed Rod Breakdown Machine - China

1 - Aplication:

The machine is used for drawing copper rod from 8.0mm to 1.2-4.0mm.

Outlet wire can go to dual take up device or coiler.

2 - Feature：

It's used for drawing and annealing copper rod to Φ1.2～Φ4.0mm wire.

The drawing capstans are driven by the same motor while the last capstan is driven by another independent motor.

In this way, the outlet diameter can be changed easily without stringing up the machine again (quick die change design).

1 - Capstan Diameter: 450mm

2 - Max.

Dies Quantity: 13

3 - Main Motor: 280KW

4 - Drawing Speed(Max) : 25m/s 3 - Parameters:

Item LHD450/13

Inlet Wire Dia.

(mm) Ø 8

Outlet Wire Dia.

(mm) Ø 1.2~4.0

Max Die No.

13

Max.

Line Speed(mm) 25

Main Motor(KW) 280

Drawing Capstan Coated with tungsten carbide

Take-up type Dual-spool take-up, drop coiler, compact coiler

Lubrication Type Immersion and spraying
