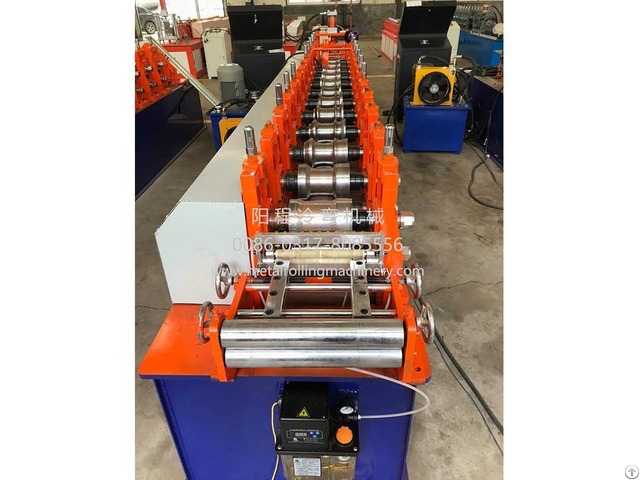

YC 122-16 Steel Roller Shutter Door Roll Forming Machine

Roller Shutter Roll Forming Machine

SURFACE TREATMENT of roller shutter forming machine

1) Processing material: steel strip

2) Material thickness: 0.45mm-1.0mm

3) Formed sizes on the machine: as per profile drawings above

4) Main motor power: 5.5kw

5) Pump power: 4kw

6) Productivity: 4-16m/min

7) Roller stations: 12 steps

8) Roller material: Cr12 steel with vacuum heat treatment HRC57°-60°

9) Active shaft material: 45#steel with high frequency surface treatment and grinding process

10) Shaft diameter: Ф50mm

11) Cutting system: hydraulic cutting, automatic cut to any length you need

12) Cutting blade material: Cr12

13) Machine construction: as per machine photos

14) Transmission type: double chains

15) Control system: Taiwan Delta PLC computer control system with inveter

16) Power supply: 380V, 3 Phase, 50Hz(or as per your request)

roller shutter making machine TECHNOLOGY

Manual decoiler→guiding platform→main roll forming machine→hydraulic cutting system→2m output table, 5.5kw electric-motor, hydraulic station with 4kw electric motor, PLC control system

Roll Forming Machine SALES TERMS:

1).

Machine Price: Please contact us, we will try to give you good discount for starting our cooperation

2).

Payment term: 30%TT should be paid as advance deposit, 70%TT before shipment

Or 100% LC at sight

3).

Package: naked with simple plastic film and loaded in one 20-feet container

4).

Delivery time: 50 working days after receipt of the deposit

5).

Guarantee: 12 months.

If any part of machine breaks, we will supply it for free.

6).

After sales service

This Door Panel Roll Forming Line is maintained free of charge for 12 months.

When the machine is used in China, we will install and debug the machine for free; if it is used at abroad, we will send the professional technician to debug.

Buyers should take all the fees for technicians traveling abroad, and pay 100USD\day\person.
