Stainless Steel Mesh Filter - China

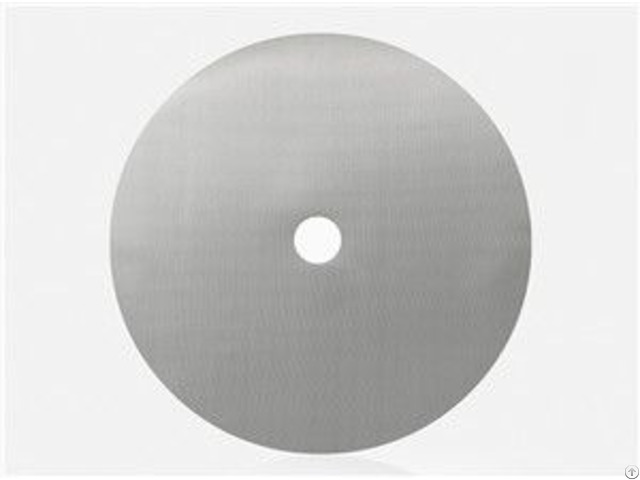

Stainless Steel Mesh Filter Disc Filter Discs & Packs Filters & Baskets

Formed Mesh Filters FEATURES

Single Layered

Outside Diameters: 5mm-600mm Stainless Steel Paint Filter PARAMETER

YMX FILTER DISC AND PACKS PRODUCT INFORMATION

Materials Stainless Steel Woven Wire Mesh

Weave Types Plain Weave, Twill Weave, Dutch Weave Edge Material Stainless Steel Plates, Copper Plates, Galvanized Sheet, Aluminium Sheet, Rubber or Plastic, Non Edge, etc

Structure Single layer, Double layer and Multi-layers

Out Diameter usually 5mm--600mm

Process Method Spot welded, Edge covering and Sintered

Application Used in distillation, absorption, evaporation and filtration process of rubber, plastic industry, the screening of grain and oil, petroleum, chemical industry, light industry, medicine, metallurgy, machinery, shipbuilding and other industries.

Can be used as air filter for car.

You Can Choose the Suitable Mesh From This Stainless Steel Wire Mesh Specification Table mesh/inch wire diameter

mm aperture

mm mesh/inch wire diameter

mm aperture

mm

2mesh 1.80 10.90 60mesh 0.15 0.273

3mesh 1.60 6.866 70mesh 0.14 0.223

4mesh 1.20 5.15 80mesh 0.12 0.198

5mesh 0.91 4.17 90mesh 0.11 0.172

6mesh 0.80 3.433 100mesh 0.10 0.154

8mesh 0.60 2.575 120mesh 0.08 0.132

10mesh 0.55 1.990 140mesh 0.07 0.111

12mesh 0.50 1.616 150mesh 0.065 0.104

14mesh 0.45 1.362 160mesh 0.065 0.094

16mesh 0.40 1.188 180mesh 0.053 0.088

18mesh 0.35 1.060 200mesh 0.053 0.074

20mesh 0.30 0.970 250mesh 0.04 0.061

26mesh 0.28 0.696 300mesh 0.035 0.049

30mesh 0.25 0.596 325mesh 0.03 0.048

40mesh 0.21 0.425 350mesh 0.03 0.042

50mesh 0.19 0.318 400mesh 0.025 0.0385 Width of Stainless Steel Wire Mesh: 0.6m-6.0m YMX FILTER MANUFACTURING CO., LTD is a custom fabricator of series of wire screen, cone strainers and woven wire cloth products.

For more than 20 years' experience, we are serving customers from a wide range of industries from all over the world.

Company Contact:

• Posted By: YMX FILTER PRODUCTS CO., LTD

• Phone: 86-0318-8871963

• Address: No.6 Jingyi Road, Anping Couty, Hengshui City, Hebei Province, China , Hengshui , hebei , China

• Email:

• Website: https://www.ymxfilter.com/

• Business Description: YMX FILTER MANUFACTURING CO., LTD is a custom fabricator and manufacturer of series of metal filters and sieve equipment products.

  Our factory is based in the home town of the mesh industry, Anping, Hebei province, China.

  Since the year 1998, we have noticed the need of the mesh filters and have set our aim as a leader manufacturer of the wire filter products.

  For more than 20 years' experience, we have accumulated technique and manufacturing experiences.

  And now we are serving customers from a wide range of industries from all over the world.
