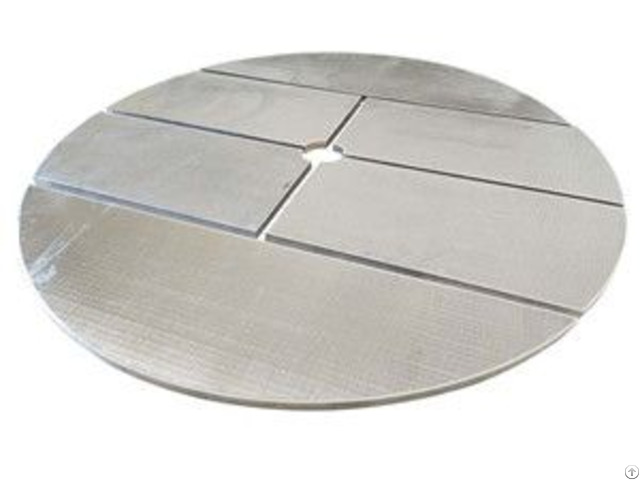

V Type Wedge Wire Support Grid - China

V-type Wedge Wire Support Grid Support Grid / Lauter Tun Screen Wedge Wire Screen

PRODUCT FEATURES SS Wedge Wire Support Grid is used in a wide variety of processes in many industries.

We use state-of-the-art manufacturing techniques that place our products at the cutting edge of wedge wire screen construction.

Stainless steel welded v wire sieve mesh filter screen panel can be designed and manufactured according to customer specifications and come in a wide range of grades - from fine gap screens for small particle sizes to heavy duty screens for heavy load applications.

Characteristic for SS V Wire Welded Screen Support Grid 1.

) Wedge Wire Screen are never locked or inserted by the objects

2.

) Due to the different pressures between inside from outside, it could be very easily to clean the plugging material.

3.

) High filtering accuracy, high strengh and durability

4.

) This is a Customized Product, we can produce according to your drawings.

Application for SS Wedge Wire Screen Support Grid

Wedge Wire Screen Support Grids are widely used in vairous kinds of medium filtering.

1 - Water Treatmnet.

They are widely used as fittings in the Water Treatment Equipments, the Environmental Protection devices, the Sea Water Transforms into the industrial or life use waters, Waste Water Treatments, Water Softening Treatment.

2 - Petroleum Industry.

The Petroleum product terminal filters and the chemical acids; the alkali liquid filters, the ethyl alcohol production.

3 - Organic Solutions Recycling Filter SS Wedge Wire Panel PARAMETER Normal Name Lauter Tun Screen, Mash Tun Screen, False Bottom Screen, Etc.

Diameter Range(MM) 200mm To 2500mm.

Diameter Customized

Normal Diameter(MM) 29”, 30”, 35”, 37”, 40”, 45”, 47”, 59”, 63”, 74”, Etc

Normal Slot(MM) 0.7mm, 0.75mm, 0.8mm, 1.0mm, customized

Normal Thickness (MM) 8.5mm, 20mm.

25mm, 30mm, 40mm, 50mm, Customized.

Sections & shape 1 Cycle, 2 PCS, 3 PCS, 4 PCS, 6 PCS, 8 PCS.

Customized

Wedge wire (MM) 2x4MM Wedge Wire, 3x5MM Wedge Wire

Support Rod (MM) 3x5MM V shaped Support Rod, 3x5mm Square Support Rod

Strengthen Rod (MM) Thickness and Height according to the diameter and screen thickness

Note Usually customized.

YMX FILTER MANUFACTURING CO., LTD is a custom fabricator of series of wire screen, cone strainers and woven wire cloth products.

For more than 20 years' experience, we are serving customers from a wide range of industries from all over the world.
