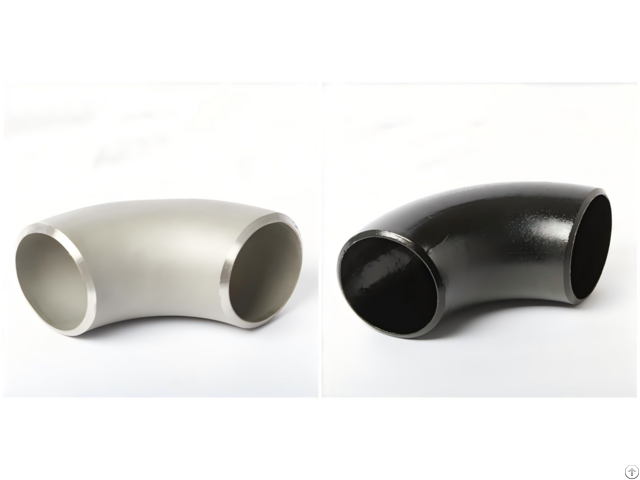

90° Buttweld Elbow Wholesales - China

There are 45° short radius elbows and 45° long radius elbows.

Long radius elbows(LR elbow) provide smaller flow resistance and pressure loss, and are suitable for general piping systems; Short radius elbows (SR elbow) are suitable for limited space or situations that require faster changes in flow direction.

The Buttweld 90 Degree Elbow offers superior flow dynamics in piping systems, ensuring efficient fluid transport with minimal pressure loss.

Ideal for industries that require robust, leakproof connections, such as oil, gas, and wastewater management.

Buttweld is used to connect the ends of pipes and fittings by a butt welding process.

Also known as welded pipe fittings.

It has ended in beveled or plain, dimensions normally from 3/4” to 24”.

Manufactured according to ASME B16.9 - In various materials like carbon steel, alloy steel, and stainless steel.

The butt weld elbow is designed to change the direction of the fluid in the piping system.

It has a long radius (LR) and a short radius (SR) elbow types and has different degrees of coverage to 45 degrees, 90 degrees, and 180 degrees.

Buttweld elbow is a steel elbow formed by hot pressing or forging.

Its connection form is to weld the elbow and steel pipe directly.

Butt-welded elbows are mainly used for elbows with higher pressure and temperature than other connection types (socket welded elbow or threaded pipe elbow).

Specifications Standard ASTM A234/ ASME SA234/ROCT10#/20#/Q235


Dimension ASME/ ANSI B16.9 | ASME B16.28 |JIS |ANSI B16.28| GOST 17375 | GOST 30253

Thickness of Fitting SCH 10, SCH20, SCH 30, STD SCH 40, SCH 60, XS, SCH80, SCH100, SCH 120, SCH 140, SCH160, XXS available with NACE MR 01-75

Types Seamless | ButtWelding

Bending Radius R= 1D, 1.5D, 2D, 3D, 6D …

Size Range Sesmless Pipe Fittings Size Range:

1/2″—24″ DN15—DN600mm Welding Pipe Fittings Size Range: 1/2″—80″ DN15—DN2000mm Thickness: 2mm-60mm
