Flexible Rubber Tee - China

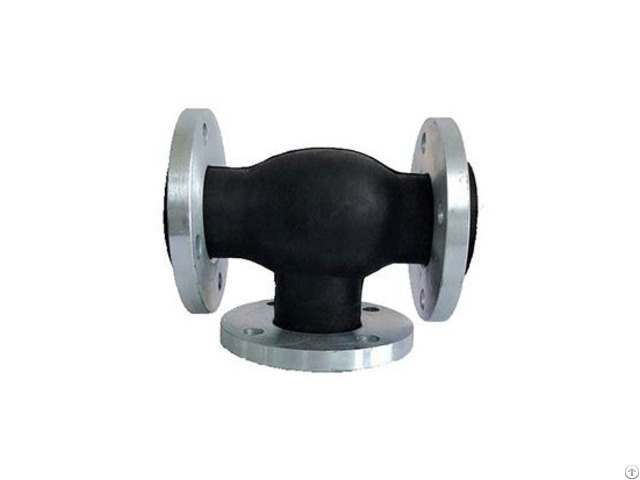

Flexible rubber tee

Rubber Joint

Item/Model WTX-I WTX-II WTX-III

Working pressure Mpa(kgf/cm²) 1.0(10) 1.6 (16) 2．5 (25)

Explosive pressure Mpa (kgf/cm²) 2.0 (20) 3.0 (30) 4．5 (45)

Vacuum Kpa (mm/Hg) 53.3 (400) 86.7 (650) 100 (750)

Applicable temperature ℃ -15℃~+115℃ special up to -30℃~+250℃ -15℃~+115℃ special up to -30℃~+250℃ -15℃~+115℃ special up to -30℃~+250℃

Applicable medium Air, compressed air, water, sea water, hot water, oil, acid, etc

Note: Material of main components is as same as JGD type

TECHNICAL PARAMETER

Nominal Diameter Length(mm) Axial elongation Axial Compression The radial displacement Deflection angle

mm Inch 50 2 150 20 20 16 20

65 2.5 150 20 20 16 20

80 3 160 20 20 16 20

100 4 170 20 20 16 20

125 5 200 20 20 16 20

150 6 230 20 20 16 20

200 8 265 20 20 16 20

250 10 280 20 20 16 20

300 12 320 20 20 16 20
