Fm Certificated Braided Stainless Steel Flexible Joint - China

Quick Details

Place of Origin: Zhejiang, China (Mainland)

Brand Name: Ehase-Flex

Model Number: EH-600/600M

Type: Flange Connection

Material: Stainless Steel

Technics: Welding

Connection: Flange

Shape: Equal

Head Code: Round

Product Name: Flexible Joint

Application: Absorb the vibration and reduce the noise

Nominal Bore: DN50-DN300; 2"-12"

Length: 200mm/300mm or customization

Rated Working Pressure: 10 Bar;16Bar;25 Bar

Temperature Rating: Max 1000 ℃

Flange Standard: JIS, ANSI, DIN, B.

S, JB

OEM/ODM: Allowed

Standard: EJMA

Certificate: FM;ISO Supply Ability

Supply Ability: 80000 Piece/Pieces per Year H.

S Code: 7307.29 Packaging & Delivery

Packaging Details

Carton Box, Pallet, or Plywood Case No Unacceptable Packaging Material or Bamboo Products been Used as Packing

Port

Shanghai, Ningbo or Any port in china

Lead Time :

Quantity(Pieces) 1 - 100 >100

Est.

Time(day) 15 To be negotiated Product Description

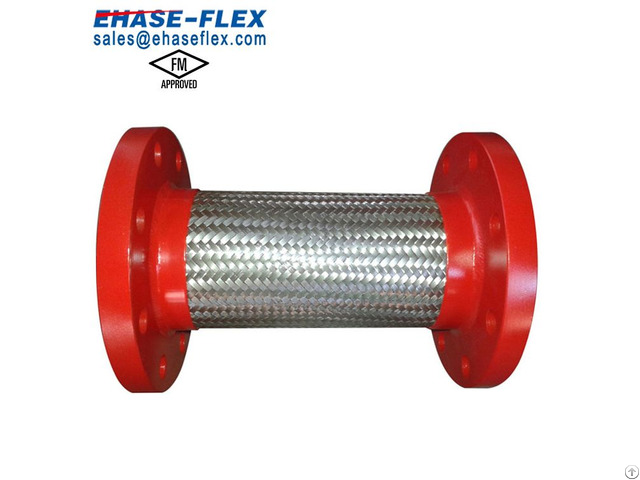

FM Certificated Braided Stainless Steel Flexible Joint

Application:

Used for pump to link with tube, absorbing vibration and reducing the noise.

Applied for larger offest and where the installing space is limited.

Construction

Item Parts Material Remark

1 Bellows SUS304 SUS316/321

2 Braids SUS304 3 Seal Rings SUS304 SUS316

4 Flanges SS400 SUS304/316/321 Specification

Nominal Bore Total Length Bellows O.D. Max Offset Rated Working Pressure

mm ins mm mm mm kg/cm2

50 2 200 73.6 28 10

50 2 300 33 16

65 2 1/2 200 88 24 10

65 2 1/2 300 31 16

80 3 200 102 20 10

80 3 300 24 16

100 4 200 128 18 10

100 4 300 22 16

125 5 200 155 23 10

125 5 300 24 16

150 6 280 185 20 10

150 6 300 22 16

200 8 280 235 20 10

200 8 300 16

250 10 300 286 17 10

250 10 16

300 12 300 340 15 10

300 12 16

*Specifications stated above are standard.

We can also design and manufacture according to customer's requriement

*Flange Standard: JIS, ANSI, DIN, B.S., JB, etc
