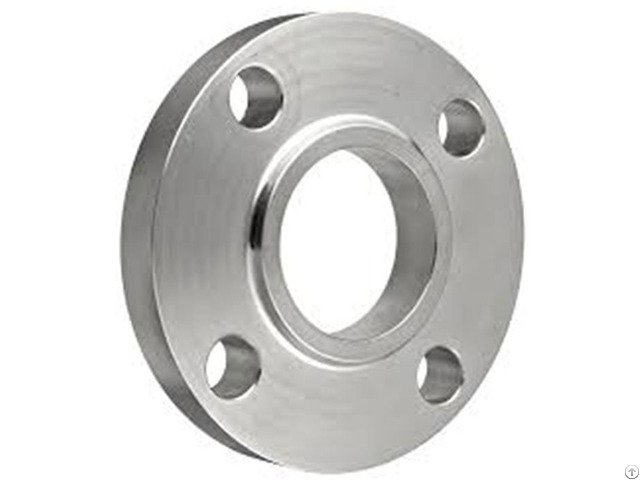

Industry Forged Flanges Asme Ansi Standard - China

Forged steel flange has higher precision and performance than the cast flange and is widely used in different industries for connecting equipment or pipelines, especially for high temperature and high pressure environments.

Rayoung privides ANSI/ASME B16.5 forged flanges, includuing Welding Neck flange, Slip On flange, Lap Joint flange, Threaded flange, plate flange and Blind flange, etc.

Forged flange is a plate-type device, usually in circular appearance, which could be attached to the ends of pipes, fittings, valves, or other objects to facilitate assembly and disassembly of the piping system.

It offers impressive mechanical performance as a connecting part.

Forged steel flange has higher precision and performance than the cast flange and is widely used in different industries for connecting equipment or pipelines, especially for high temperature and high pressure environments.

Types of Forged Flanges

Industrial welded forged flanges come in many different types.

Each species meets its special requirements.

For example, long weld neck flanges are attached to the necks of the pipes.

There is also have weld neck flange weld neck flange;

threaded flange;

slip-on flange;

lap-joint flange;

blind flange;

Plate flange

Specification

Industrial Steel Forged Flange

Standard ASME/ANSI B 16.5 ASME B 16.47 ASME B 16.48 GOST 12821 GOST 12820 GOST 33259 EN 1092 DIN JIS SABS/SANS 1123 BS 4504

Size 1/2″-24″ 26″-60″ 1/2″-24″ DN10-DN1200 DN10-DN1200 DN10-DN2400 DN10-DN2000 DN10-DN2000 DN10-DN1500 DN10-DN600 DN10-DN4000

Pressure Class 150

300, 400

600, 900

and 2500 Class 75

150, 300

400, 600

and 900 Class 150

300, 400

600, 900

and 2500 PN6, PN10

PN16, PN25

PN40, etc PN6, PN10, PN16, PN25 PN6, PN10, PN16, PN25, PN40, etc PN6, PN10

PN16, PN25

PN40, etc PN6, PN10, PN16, PN25, PN40, etc 5KG, 10KG

16KG, 20KG

30KG, 40KG

etc 1600/3

1600/4

Table D

Table E PN 2.5

PN6, PN10

PN16, PN25

PN40, etc

Material Carbon steel: Steel 20#, A105, A105N, Q235, 16Mn, Q345, etc

Alloy steel: ASTM A182 F11, F22, LF2

Stainless steel: 304/L, 316/316L

Flange Type Weld Neck Flange, Slip-on Flange, Socket Welding Flange, Plate Flange, Blind Flange, Lap Joint Flange, Threaded Flange, Orifice Flange, Spectacle Flange, Stub End, Weld Neck Collar, Welding-on Collar

Sealing Face Raised Face (RF), Flat Face(FF), Ring Joint Face(RTJ), Male Face-Female Face(SMF), Tongue Face & Groove Face

Surface Treatment Anti-rust Oil, H.D.G., Black Painting, Yellow Painting, Red Painting, Etc

Technique Cutting – Heat Treatment – Forging – Machining – Drilling – Painting Certificates ISO 9001, CE, GOST-R, CCS, EN 10204/3.1B, MTC, Radiography Test Report, Ultrasound Test Report, SGS and other third party Inspection Reports

Package Pallets, Plywood Case, etc

Application Petroleum, Natural Gas, Water Disposal, Shipbuilding, Nuclear Energy, Chemical Engineering, Deckle, Electric Power

Company Contact:

• Posted By: HEBEI RAYOUNG PIPELINE TECHNOLOGY CO., LTD

• Phone: 13230188362

• Address: Wuliyao Industry Zone, Cangzhou , Hebei , China

• Email:

• Website: https://hb-steel.com/

• Business Description: Since 1983, RAYOUNG has specialized in steel pipe fittings, flanges and steel pipes meeting standards for GB, GOST, EN, DIN, JIS, SANS, API, MSS, and ASME codes.

  Your Responsible Supplier Partner for Oil & Gas & Chemical Pipeline Products
