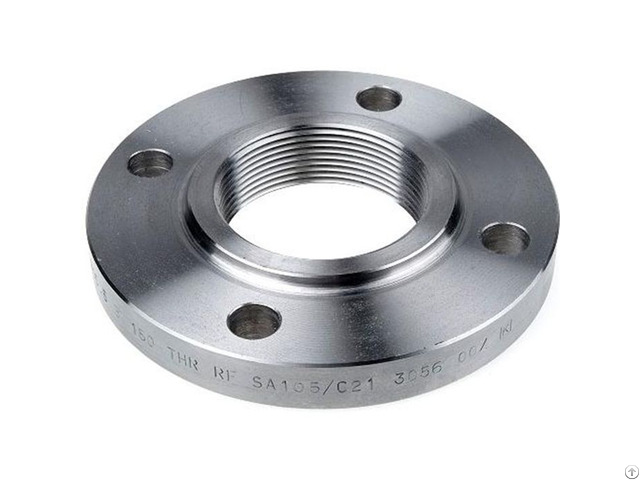

Threaded Flanges: A Welding-Free Piping Solution Threaded flanges (also known as screwed flanges or NPT flanges) feature a female-threaded bore that screws onto a male-threaded pipe end, eliminating the need for welding.

This design makes them ideal for quick assembly and safe use in hazardous environments.

NPT threaded flanges hot sales Key Features & Applications 1 - Welding-Free Connection – Perfect for explosive or flammable environments (e.g., petrol stations, chemical plants) where welding sparks pose a risk.

2 - Easy Installation & Maintenance – Can be quickly assembled or disassembled compared to welded flanges.

3 - Cost-Effective for Small Pipes – Typically used for ½” to 6” pipes, though larger sizes (up to 24”) are available upon request.

The amount of additional machining and labor hours that go into producing a larger diameter threaded connection makes them less popular than slip-on flanges or weld neck flanges.

4 - Limited to Low-Pressure/Low-Temperat ure Use – Best suited for non-toxic fluids and moderate conditions, as threads may weaken under high heat or pressure.

5 - Face Types – Only available with flat face (FF) or raised face (RF) finishes, not suitable for high-pressure ring-type joints.

How to install a threaded flange? Clean the pipe threads and the inside of the flange to ensure a secure and leak-free connection.

Align the threaded flange with the pipe and screw it onto the pipe’s threaded end by hand until it is snug.

Use a wrench to further tighten the flange onto the pipe.

Be careful not to over-tighten, as this can damage the threads or pipe.

Optionally, use thread sealant or Teflon tape to prevent leaks in lower-pressure systems, ensuring a tight seal.

Why Choose JS Fittings for Threaded Flanges? With 40+ years of experience in steel flange manufacturing, JS Fittings provides: 1 - High-quality carbon steel, stainless steel, and alloy threaded flanges 2 - Custom sizes and pressure ratings (ASME, ANSI, DIN, and more) 3 - Fast delivery & expert technical support Contact Us for a quote or project consultation—we help you source flanges faster, smarter, and more affordably than competitors!
