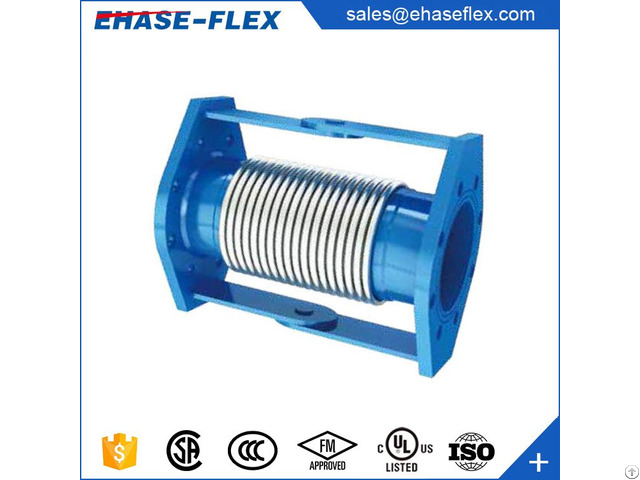

Stainless Metal Hinge Bellows Expansion Joint - China

Quick Details

Place of Origin: Zhejiang, China (Mainland)

Brand Name: EhaseFlex

Model Number: EH-1600/1600H

Type: Flange

Material: Stainless Steel, SUS304/316/321

Technics: Welded

Connection: Flange

Shape: Equal

Head Code: Other

Size: DN32-DN800

Length: 200-400mm or As Customer's Requirement

Rated Working Pressure: 10bar, 16bar, 25bar, 40bar

Angular Rotation: 10-20° or As Customer's Requirement

Standard: EJMA

Flange: JIS, ANSI, DIN, BS, JB,,, Application: Absorbing Angular Displacement of Single-Plane

Certificate: ISO 9001

OEM/ODM: Allowed Supply Ability

Supply Ability: 7000 Piece/Pieces per Month HS Code : 7307 99

Packaging & Delivery

Packaging Details

Carton Box, Pallet, or Plywood Case No Unacceptable Packaging Material or Bamboo Products been Used as Packing

Port Shanghai or Ningbo or Any Port in China

Lead Time : Normally 20 Days; Depends on Customer's Requirement Product Description

Stainless Metal Hinge Bellows Expansion Joint

100% Before Delivery

More than 40-year experience in manufacturing

Application:

Absorb the angular displacement of single-plane.

Installation attention:

1 - Two or three stainless steel compensator use together

2 - the installation of stainless steel compensator must maintains the hinged rotation plane and the displacement plane consistent.

Construction

ITEM PARTS MATERIAL REMARK

1 BELLOWS SUS304 SUS316/321

2 FLANGE SS400 SUS304/316/321

3 TUBE ENDS SPG/SS400 SUS304/316

4 HINGED PIN SS400 SUS304

5 HINGED ARM SUS304 SUS304 Specification

DN TOTAL LENGTH BELLOWS OUTSIDE DIA.

EFFECTICE AREA ANGULAR ROTATION MAX.

WORKING PRESSURE KG/CM2

mm mm mm cm2 degree EH1600 EH1600H

32 200 49 14.5 20 10 16

40 200 58 17.6 20 10 16

50 200 76 30.4 20 10 16

65 250 92 43.8 19 10 16

80 250 106 62.8 19 10 16

100 250 133 107.7 15 10 16

125 250 163 162.9 13 10 16

150 250 190 227.5 12 10 16

200 300 252 385.3 12 10 16

250 350 315 670.1 11 10 16

300 350 366 923.5 10 10 16

350 350 398.1 1102 10 10 16

400 400 462.8 1464 10 10 16

500 400 564 2235 10 10 16

600 400 666 3167 10 10 16

*Specifications stated abvoe are the standard.

We can design and manufacture according to customer's requirement

*Flange Standard: JIS, ANSI, DIN, B.S. JB etc Features

1 - Excellent Welding Technology, like a fish swimming in water.

2 - Omega Bellows, More flexible and longer service life.

Production Capacity

Flexible Sprinkler Hoses: 350, 000pcs per Month

Flexible Joints/ Expansion Joints: 80, 000pcs Annual

Gas Connector: 300, 000pcs Per Month Water Connectors: 5, 000, 000m Annual Packaging & Shipping

Carton Box, Pallet, or Plywood Case FAQ

Q : Are you trading company or manufacturer?

A: We are manufacturer of expasnion joint, flexible joint, flexible sprinkler hose, flexible tube, corrugated gas connector, spring absorber with more than 40-year experience.

Q: Do you have products catalog?

A: Yes, we have.

Please tell me your email or instant messager, we will send our catalog.

Q: Can you provide drawings and technical data?

A: Yes, our professional technical department will design and provide drawings and techical data.

Q: Do you provide samples? Is it free or charged?

A: Yes, we can offer sample free but shipping charges covered by customer.

Q: Have your products been exported?

A: Yes, they have been exported to USA, France, Australia, Peru, Chile, Brazil, Uruguay, Russia, UAE, Saudi Arabia, Oman, Egypt, Keyna, Serbia, Vietnam, South Korea, Indonisia, India, Thailand, Pakistan, Philippines, Singapore, HK.

Q: How long is your delivery time?

A: Depends on QTY, but normally no more than 20 working days.

Q: Can the products be manufactuered by customer's requirement?

A: Yes, the specifications stated above are the standard ones, we can design and manufacture as requirement.

Q: Visting company is allowed or not?

A: Yes, we welcome customers visiting our company.

We are located in Hangzhou, Zhejiang Prov., China
