En 856 4sp Hydraulic Rubber Hose - China

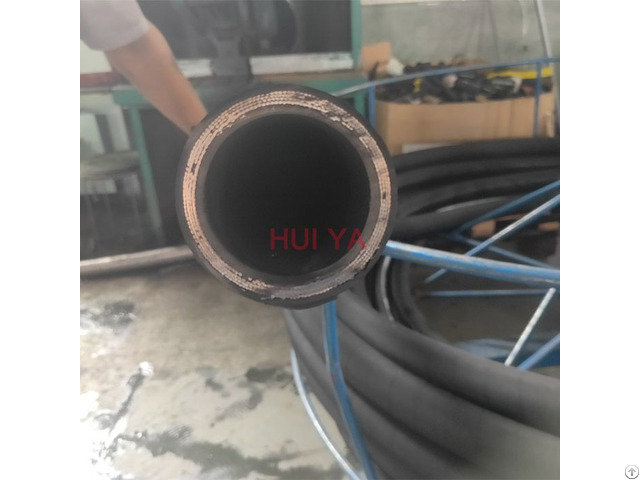

EN 856 4SP hydraulic rubber hose

PRODUCT PARAMETERS

EN 856 4SP hydraulic rubber hose is similar to EN 856 4SH hydraulic hose, but the working pressure (under the same working temperature) is higher than EN 856 4SH hose.

Four layers of high tensile spiral wires give the hose best abrasion resistance and impulse fatigue.

This kind of reinforcement is ideal for outdoor applications like forestry and mine equipment.

Oil resistance synthetic rubber lives peacefully with water and petroleum based hydraulic fluids within -40 °C to +100 °C.

If the working temperature is lower or higher than the temperature, the service life of the hose will be materially affected.

high pressure resistance hydraulic rubber hose

Tube: Inner tube in high quality synthetic rubber compounds.

Reinforcement: Four high tensile steel wire spiraled layers.

Cover: Abrasion and weather resistant synthetic rubber.

Temperature: -40 °C to +100 °C (-40 °F to +212 °F).

hydraulic rubber hose manufacturers: Our company specializes in producing High pressure hoses, Hydraulic hoses, SAE & DIN series hoses, Drilling Rotary hose, Choke & Kill Line, Bop hoses, Suction and Discharge hose, Fabric hoses, Metal Flexible hose, Fireproof hose, Silicone hose and Hose Assembly, Kelly Hose, etc.

EN 856 4SP Steel Wire Spiraled Hydraulic Rubber Hose Technical Specification

PART NO.

Size SAE ^i7P ID Reinforcement w.

u OD Max W.

P Proof pressure Min B.

P Min b.

K Weight mm inch dash min max min max min max MPa Psi MPa Psi MPa Psi mm kg/m

EN8564SP-0006 6.3 1/4 -4 6.2 7.0 14.1 15.3 17.1 t&7 45 6525 90 13050 180 26100 150 0.64

EN8564SP-0010 10 3/8 -6 9.3 10.1 16.9 20.6 22.2 44.5 6450 89 12905 178 25810 180 0.75

EN8564SP-0013 12.5 1/2 -8 12.3 13.5 19.4 21.0 23.8 25.4 41.5 6020 83 12035 166 24070 230 0.89

EN8564SP-0016 16 5/8 -10 15.5 16.7 23.0 24.6 27.4 29.0 35 5075 70 10150 140 20300 250 1.10

EN8564SP-0019 19 3/4 -12 •1&6 19.8 27.4 29.0 31.4 33.0 35 5075 70 10150 140 20300 300 1.50

EN8564SP-0025 25 1 -16 25.0 26.4 34.5 36.1 3&5 40.9 28 4060 56 8120 112 16240 340 2.00

EN8564SP-0032 31.5 1 1/4 -20 31.4 33.0 45.0 47.0 49.2 52.4 21 3045 42 6090 84 12180 460 3.00

EN8564SP-0038 38 1 1/2 -24 37.7 39.3 51.4 53.4 55.6 5&8 1&5 2680 37 5365 74 10730 560 3.40

EN8564SP-0051 51 2 -32 50.4 52.0 64.3 66.3 68.2 71.4 16.5 2390 33 4785 66 9570 660 4.35
