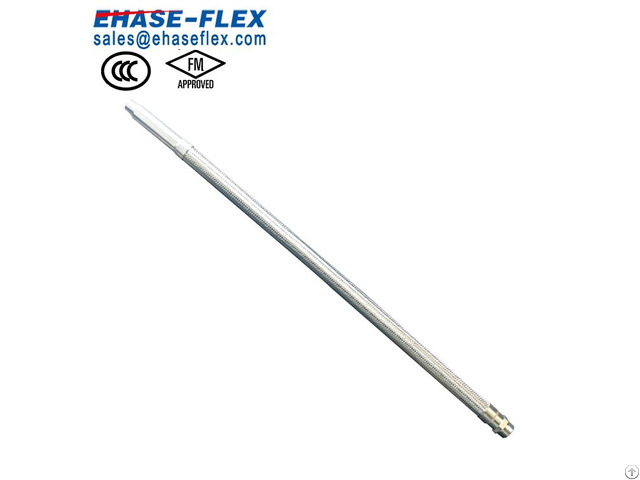

Fm Stainless Steel Flexible Fire Sprinkler Drop Hose - China

Quick Details

Place of Origin: Zhejiang, China (Mainland)

Brand Name: Ehase-Flex

Model Number: EH-8100-W

Size: DN25 (1 inch)

Inlet: 1 inch

Outlet: 1/2inch or 3/4inch

Length: 600mm, 800mm, 1000mm, 1200mm, 1500mm, 1800mm

Temperature Rating: Max300℃

Max.

Working Pressure: 14kgf/cm2

Min.

Bend Radius: R150mm

Thread: NPT or BSPT

Certificate: ISO, CCC, FM

Application: Connecting Sprinkler Head in Commercial Building Supply Ability

Supply Ability: 10000 Piece/Pieces per Week HS Code: 8307 10 Packaging & Delivery

Packaging Details

Cartons or Pallet or Plywood Case No Unacceptable Material Used for Packing

Port

Shanghai or Ningbo or Any Port in China

Lead Time :

Quantity(Pieces) 1 - 2000 >2000

Est.

Time(day) 25 To be negotiated

Application:

EH-8100-W is used to connect sprinkler head in commerical suspended ceiling Features:

1 - FM approved

2 - Easy installation: Take 1/8 of conventional system to install, reducing labor cost.

3 - Good flexibility: Eliminate potential leaks and protect gel seals during seismic activity.

Allow the independed way between ceiling grids and main water pipe.

Eliminate ceilings s tress and leak due to misaligned hard piped installation.

4 - With the feature of adjustable, it is suitable for types of ceiling keel and makes easy to adjust the location and height of sprinkler head.

5 - No downtime while sprinker heads are being removed to accommondate tool or floor-plane configuration.

Construction: ITEM PARTS MATERIAL

1 CONNECTOR SPCC/SUS304

2 SEAL RING SUS304

3 BELLOW SUS304

4 WIRE BRAIDS SUS04

5 NIPPLE SPCC/SUS304 Production Process

Production Capacity

Flexible Sprinkler Hoses: 350, 000pcs per Month

Flexible Joints/ Expansion Joints: 80, 000pcs Annual

Gas Connector: 300, 000pcs Per Month Water Connectors: 5, 000, 000m Annual

Packaging & Shipping

Carton Box, Pallet, or Plywood Case No Unacceptable Packaging Material or Bamboo Products been Used as Packing

Company Contact:

• Posted By: E-hase Flex

• Phone: 86-571-87176348

• Address: Tangqi Industrial Park Yuhang Dis, HangZhou , Zhejiang , China

• Email:

• Website: https://www.ehaseflex.com/

• Business Description: Ehase-Flex is one of the most famous brand in metal flexible joint and expansion joint in Taiwan, with more than 40-year experience in manufacturing flexible joint, expansion joint, flexible sprinkler hose, flexible tube, gas connector, rubber joint.

  We founded our factory in China mainland in 2006 - Our company had obtained the quality control system ISO9001.

  Our products are FM, UL, CCC, CSA , SGS approved and 100 % tested before delivery.

  With high quality our products are widely used in many field such as petroleum, chemical, semiconductor, electronics, machinery, electric power, ship building, nuclear energy, and have got highly recognized among customers both domestic and overseas.

  We have customers such as SAMSUNG, BMW, DUPONT, LG, MIXC MALL, Hyatt hotel, Marriott Hotel.
