Fuel Suction Hose - China

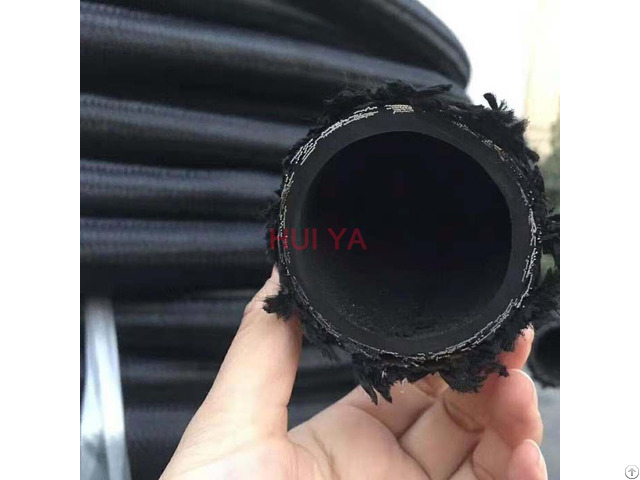

Fuel suction hose

PRODUCT PARAMETERS

Fuel hose

Applications:

Used as oil return line transporting oil, gasoline, diesel, lubricants and other mineral oil

on the condition of positive pressure

Construction:

Tube: Black NBR

Reinforcement: One fiber braid

Outer Shield: High tensile braided fiber with low shrink gray

Temperature Range: 30°c-+110°c, -34°~+212F

Standard: Din73379 2B

Our company specializes in producing High pressure hoses, Hydraulic hoses, SAE & DIN series hoses, Drilling Rotary hose, Choke & Kill Line, Bop hoses, Suction and Discharge hose, Fabric hoses, Metal Flexible hose, Fireproof hose, Silicone hose and Hose Assembly, Kelly Hose, etc.

Sizes and technical parameters:

No.

ID 0D WP BP Inch mm Inch mm bar bar

1 1/8" 3.2 23/64“ 9 20 80

2 5/32" 4 25/64" 10 20 80

3 3/16M 4.8 7/16" 11 20 80

4 1/4" 6.3 1/2" 12.7 20 80

5 5/16" 7.9 35/64“ 14 20 80

6 3/8" 9.5 5/8” 16 20 80

7 15/32" 12 3/4" 19 20 80

8 1/2" 12.7 25/32" 20 20 80

9 5/8" 16 61/64" 24 10 40

10 3/4" 19 1-9/64" 28.8 10 40

11 1" 25.4 1-3/8" 35 10 40
