Vibrator Hoses For Rig Piping Systems - China

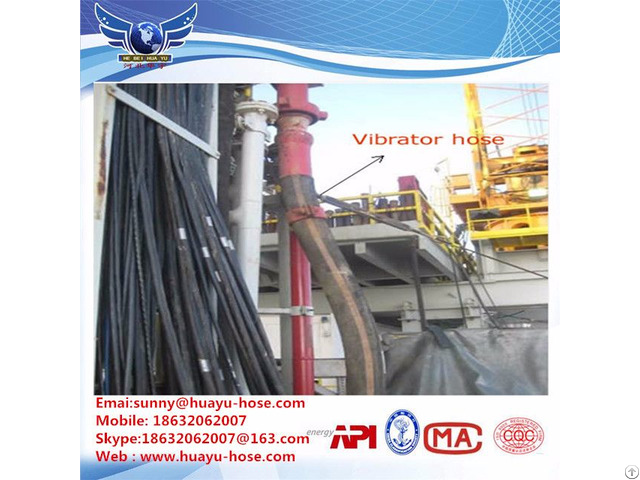

Vibrator hose is often used between two piping systems or between the mud-pump discharge outlet and the high-pressure mud piping system.

It is designed to dampen noise pollution and vibration, or used to compensate misalignment or thermal expansion.

Vibrating hoses are available in a variety of end fittings from NPT threads to flange connections.

Four or six spiral cable reinforcement support most of working pressure.

It should be handled well to avoid any kicking or crushing.

Stainless steel armor is an external protective armor for the vibrator hose.

It protects the hose from mechanical damage, cuts, ozone and degradation from other elements.

Production description:

Tube: oil resistant for petroleum drilling fluids;

Reinforcement: four or six high tensile steel cable;

Cover: abrasion, ozone and oils resistance;

Operating temperature: -22°F to 200°F (-30°C to 93°C); Operating pressure: 4000psi, 5000psi and 7500psi;

Hose inside diameter: 2", 2.5", 3", 3.5", 4", 5", 6";

Length: up to 110ft;

Safety factor: 2.5;

End fittings: API male nipples, threaded or butt-weld hammer unions, API flanges or as required;

Options: stainless steel armor available;

Certification: API 7K.
