Heat Resistant Fabric Conveyor Belt - China

Fabric Conveyor Belt, Heat Resistant Conveyor Belt, High Temperature Conveyor Belt Supplier

1 - Applications

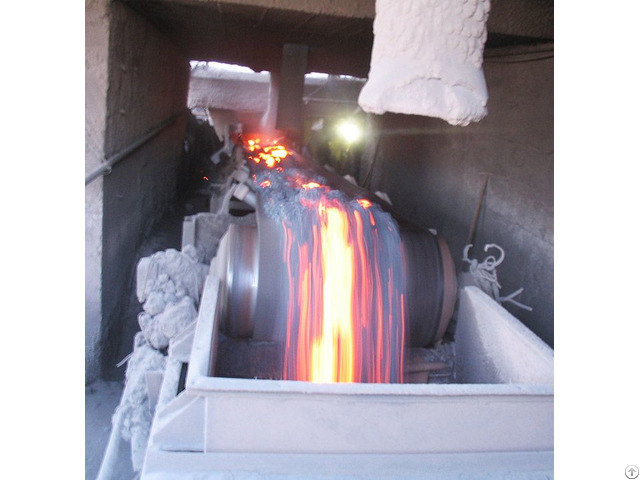

Heat resistant conveyor belt is suitable for transporting high temperature materials, such as sintering ore, hot coke, cement clinker, hot casting, etc.

According to heat resistant grade of different working conditions, we use EPDM or SBR as cover rubber and use high-strength EP or cotton canvas as tension element.

2 - Heat resistant grade

Four grades divided according to different testing temperatures:

Grade Testing temperature(≤)

T1 100℃

T2 125℃

T3 150℃

T4 175℃

3 - Physical properties of rubber cover

Item Grade T1 T2 T3 T4 Changing range allowed

Hardness Difference between before-aging and after-aging (IRHD) +20 +20 ±20 ±20 Maximum value after aging (IRHD) 85 85 85 85

Tensile strength Change rate of property/ % -25 -30 -40 -40 Minimum value after aging/ MPa 12 10 5 5

Breaking elongation Change rate after aging/ % -50 -50 -55 -55 Minimum value after aging/ % 200 200 180 180

4 - Full-thickness tensile propertiesa.

a.

Full thickness, longitudinal tensile strength after-aging test reduces not lower than 30% of before-aging values.

b.

Full thickness, longitudinal elongation at reference force, not more than 4%.

c.

Longitudinal tensile strength, not less than the below table.

(N/mm)

Nominal belt type 160 200 250 315 400 500 630 800 1000 1250 1600 2000 2500 3150

5 - Ply adhesion at normal temperature

Item Ply to ply Rubber cover to ply

All samples average value/ (N/mm) ≥ 4.5 3.5

All samples min peak value/ (N/mm) ≥ 3.9 2.9 Wear resistant fabric conveyor belts for the transport of heavy abrasive materials.

The quality of our Fire Resistant Conveyor Belt is guaranteed.

We are Cotton Conveyor Belt Wholesaler.

If you don't understand anything, you can contact us.

Company Contact:

• Posted By: Baoding Huayue Rubber Belts Co., Ltd.

• Phone: +863123912064

• Address: Boye County Economic Development Zone, baoding , Hebei , China

• Email:

• Business Description: Baoding Huayue Rubber Belts Co., Ltd started business by producing rubber belts since 1982 - It has been one of top 10 conveyor belts manufacturers and is the major factory of fabric conveyor belt in China.

  It covers an area of about 180666㎡ including building area 26666㎡.

  There are more than 300 staffs in our company.

  Registered capital is 200 million CNY, and annual production capacity is 30 million square meters.

  It has a complete R&D center and Testing Center.

  Our main products include steel cord conveyor belt, EP, Nylon conveyor belt, PVC PVG solid woven fire resistant conveyor belt.

  Anti-tear and fire resistant steel cord conveyor belt, more than 200 subclass types and sizes.
