Api Flange Stainless Steel Ball Valve Supplier - China

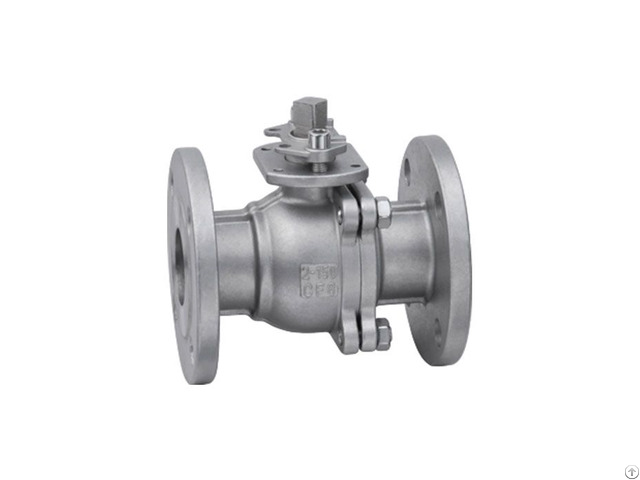

Api flange stainless steel ball valve

features:

size range: 1/2" up to 48"

pressure range: ansi 150lb to 2500lb

end connection: bw, rf, rtj

operate: lever, gear, actuator

material: stainless steel, duplex stainless steel

seals: soft seal, metal to metal introduction to stainless steel ball valve

the stainless steel ball valve can be closed tightly with only 90 degrees of rotation and small torque.

the completely equal valve body cavity provides low resistance, straight flow channel for the medium.

the main feature of the ball valve is its compact structure and easy operation and maintenance.

the stainless steel ball valve can be used to control the flow of various types of fluids such as air, water, steam, various corrosive media, mud, oil, liquid metal, and radioactive media.

the ball valve body can be integrated or combined.

this type of valve should generally be installed horizontally in the pipeline.

stainless steel ball valve classification: stainless steel pneumatic ball valve, stainless steel electric ball valve, stainless steel manual ball valve.

stainless steel ball valve material is divided into 304, 316, 321 stainless steel ball valves.

standards:

valves design: api6d, api608

face to face: ansi b16.10

end connection: ansi b16.5, ansi b16.25

testing&inspection : api6d, api598

fire safe testing: api607, iso10497, api6fa

suitable medium: water, oil, air and some corrosive liquid advantages of stainless steel ball valve:

1 - the fluid resistance is small, and its resistance coefficient is equal to the pipe length of the same length.

2 - simple structure, small size, and lightweight.

3 - it is tight and reliable.

the sealing surface material of the ball valve is widely used in plastic and has good sealing performance.

it has also been widely used in vacuum systems.

4 - easy operation, fast opening, and closing, only need to rotate 90 ° from fully open to fully closed, which is convenient for long-distance control.

5 - easy maintenance, the simple structure of the ball valve, the seal ring is usually movable, and it is more convenient to disassemble and replace.

6 - when fully open or fully closed, the sealing surfaces of the ball and the valve seat are isolated from the medium.

when the medium passes through, it will not cause erosion of the stainless steel valve sealing surface.

7 - a wide range of applications, from small diameter to several millimeters, large to several meters, can be applied from high vacuum to high pressure.

ball valves have been widely used in petroleum, chemical, power generation, papermaking, atomic energy, aviation, rocket, and other departments, as well as people's daily life.

a ball valve is a form of quarter-turn valve which uses a hollow, perforated and pivoting ball to control flow through it.

it is open when the ball's hole is in line with the flow and closed when it is pivoted 90-degrees by the valve handle.

the handle lies flat in alignment with the flow when open, and is perpendicular to it when closed, making for easy visual confirmation of the valve's status

application scope: petroleum chemical industry, electric power, metallurgy, medicine, real estate, municipal engineering, and other industries.

xintai valve cordially welcomes our old friends and new customers to contact us for further cooperation.
