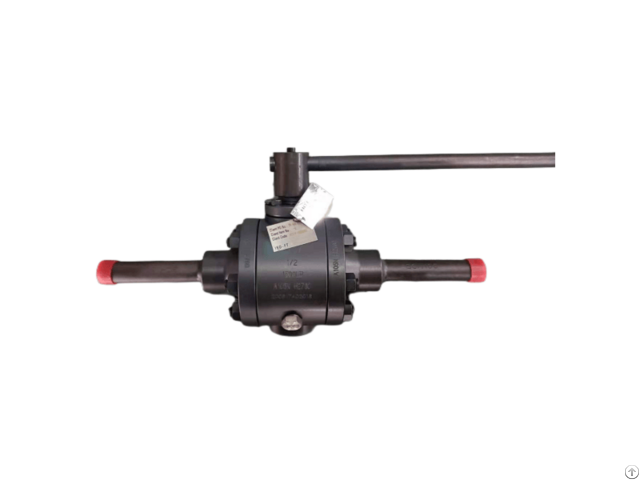

Astm A105n Trunnion Mounted Ball Valve - China
price: 1.00 Dollar US$
Looking for a Trunnion Mounted Ball Valve Manufacturer? Our valve comes in 1/2 inch and DN15 sizes with a Class 1500 LB and PN250 rating, designed to API 6D and made with ASTM A105N material.
The valve features a three-piece body with extended nipples and F316 trim.
Order yours today! Valve Description:
1854002 Trunnion Mounted Ball Valve 0.5BS15SA105
Design Standard: API 6D
Structure: Three pieces body, Side Entry, Bolted Bonnet
Nominal size: 1/2 Inch
Nominal class: 1500 LB
Bore Type: Full Bore
End Connection: SW+100mm nipples-Socket Weld
Operation: Lever
Body Material: ASTM A105N
Trim Material: ASTM A182 F316, PEEK Seat, Viton AED Sealing
Face-to-face: Manufacturer Standard
Test and inspection: API 598, API 6D
Key Features: Double block and Bleed (DBB), Anti-static Device, Fire Safe, Anti-Blowout Stem, Special Trunnion mounting type for <2"", extended bonnet with 100mm welded nipples Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 1/2 - 2 Inch (DN15 - DN50)
Pressure range: Class 150 - 2500 LB
End connection: SW, BW
Working temperature: -29℃ - +150℃
Operation: Manual, Pneumatic Actuator, Motor Actuator
Company Contact:
- Posted By: China Bosseal Valves Manufacturer Co., Ltd.
- Phone: 13962282972
- Address: Building 2, NO.59, Songshan Road, Suzhou , Building 2, NO.59, Songshan Road, China
- Email:
- Website: https://www.bossealvalves.com
Published date: May 15, 2023
- Business Description: China Bosseal Valves Co., Ltd is a professional industrial valve manufacturing company in Suzhou, China, founded in 2013 with an international sales office and facilities of forging, machining, and valve production workshops.
We mainly supply Ball Valves, Gate Valves, Globe Valves, Check Valves, Butterfly Valves, Plug VaIves, and Strainers designed and manufactured according to API, ASME, ISO, DIN, BS, EN standards.
Over the past years, our valves have been supplied to global clients' projects in Oil & Gas, Chemical, Power Generation, Marine, Mining, Water Treatment, and Air Separation industries with high satisfaction.
We are truly excited and eagerly look forward to working with all of you! If you need any support with our Valves, pls contact us
