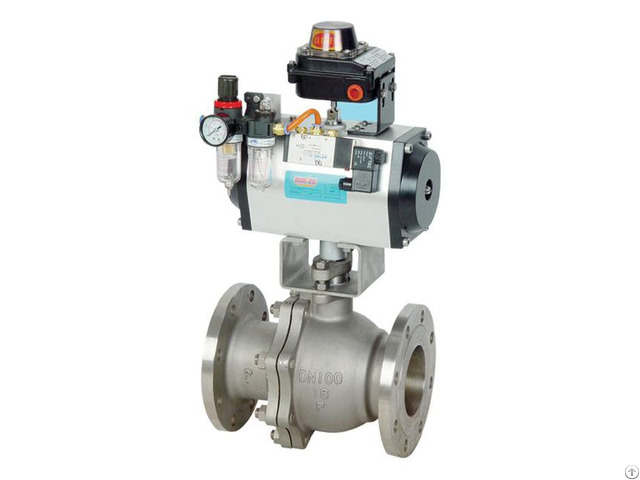

The Floating Ball Valve - China

The floating ball valve is a kind of common product in the industry.

Specially provided for the condition with low and middle pressure.

This ball valve is applicable for water, oil, steam and other corrosive mediums.

Features

1 - Manufactured with full bore or reduce bore structure, the one-piece floating ball valve, two-piece floating ball valve and three-piece floating ball valve are all available .

2 - The floating structure will make the ball pressing on the sealing surface due to the displacement caused by the pressure from the medium.

So our floating ball valve has good sealing performance .

3 - The valve stem of the manual ball valve is offered with blow-out proof structure.

4 - In case there is fire, the electric floating ball valve is still reliable for use due to the fireproof structure of the valve.

5 - To avoid the accumulation of the static, this range of valve is provided with anti-static structure, The spring plunger type static extraction device forms the static access between the ball and the stem and valve body and stem to avoid the accumulation of the static.

Technical Specifications

Size：2”~8”

Pressure：Class 150~Class 300

Structure Type：Floating

Material of Valve Body：WCB(A105), WC6, WC9, LCB, CF8(304), CF8M(316), CF3(304L), CF3M(316L)etc.

Sealing material ：Rubber, PTFE, Hard Alloy, etc.

Connection Type：Flange, weld type

Drive Mode: Manual drive, Electric drive or Pneumatic drive

Design standard：ASME B16.34, ASME B16.10, ASME B16.5, ASME B16.25.

Applications

Chemical industry

Polysilicon industry

Power industry

Company Contact:

• Posted By: Henan Quanshun Flow Control Science&Technology Co.,Ltd

• Phone: +86-18003823620

• Address: No.28 , Huagong Road, Zhengzhou , Henan , China

• Email:

• Website: http://www.qslk.cn

• Business Description: Henan Quanshun Flow Control Science & Technology Co., Ltd is a special high-tech enterprise engaged in manufacturing flow control equipment including: semi-ball valve , rotating ball valve , ball valve, control valve, butterfly valve, gate valve, check valve and others.

  Our equipment can be used in poor working condition with strict requirement on corrosion resistance, abrasion resistance and erosion resistance of the product.

  Our Products:

  - bidirectional rotary ball valve

  - eccentric semi ball valve

  - ball segment valve

  - slurry valve

  - dumping valve
