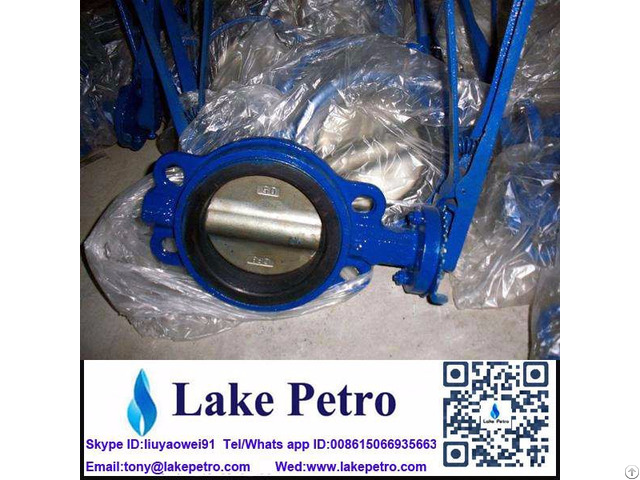

Butterfly Valve Wafer Type 20 Centigrade - China

Butterfly valve Butterfly valve Butterfly valve Butterfly valve Product Description Butterfly valve Butterfly valve 1) Standards:

1 Design Standard conform to: MSS SP-67M API609, EN593

2 Connection flange conform to: DIN PN10/16/25 ANSI B16.1, BS4504, ISO PN10/16, JIS B2212/2213, BS 10 Table D, BS10 Table E

3 Top flange conform to: ISO5211

4 Face to face conform to: API609, ISO5752 series 20, BS5155

5 Test standard conform to: API 598 2) Design Characters:

1 Rubber backed seat with stable valve torque.

2 Grooved sleeve design to achieve stable pisitioning

3 Simple construction, small in size, light in weight.

Easy disasembling, installation and maintenance.

4 Minimized operating torque.

Lewer, gear, pheumatic and electric actuators can be chosen.

5 Special design, high flow rate and low flow resistance.

6 Suitable madium: water, sewage, sea water, air, steam, foof, medicament, oils, acids, alkais, salts etc.

No leakage under the rated pressure.

3) Performance:

Nominal Diameter: Non-backed: DN50-DN300

backed: DN50-DN300, DN350-DN1200

Nominal Pressure PN(mpa): 1.0, 1.6, 2.0, 2.5

Testing pressure (water) Ps(MPa) Body seat: 1.5 times rated pressure

Seat test: 1.1 times rated pressure Butterfly valve 3) Material List

No.

Parts Name 1 Body Cast iron/Ductile iron/ Stainless steel/Carbon steel

2 Disc AI-Bronze/Monel/CF8M/WCB/ Ductile Iron

3 Pin SS316/SS316/SS304

4 Seat EPDM/PTFE/Buna/Hypaton/Vi ton/Neoprene

5 Stem Cr13/SS 416/SS316/Carbon Steel

6 Bushing P.T.F.E./Lubricating

7 O-ring EPDM/Bunal/Hypalon/Viton/ Neoprene Butterfly valve
