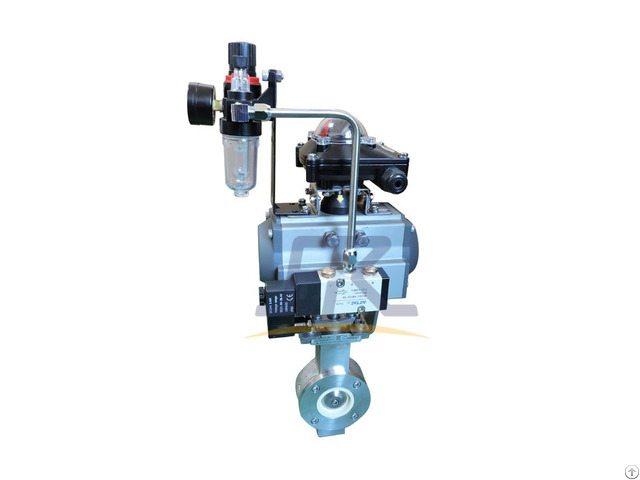

Pneumatic Stainless Steel Ceramic Lined Butterfly Valve - China
price: 1200.00 Dollar US$
FREE-VALVE pneumatic stainless steel ceramic lined butterfly valves are operated in the harshest control environments and offers excellent resistant to cavitation which is major problem for process control valves.
The ceramic materials are applied to the most common problem areas within disc of butterfly valve.
These ceramic materials are 6-8 times harder than stainless steels and this ensures that the ceramic butterfly valve can operate under harsh, abrasive service environment.
Features 1 - Wafer type ceramic butterfly valves are light and easy to install.
2 - The disc sealing ring and seat are both high performance ceramics.
High pure 99% Alumina, Zirconia and solid Tungsten carbide are used for wafer type ceramic butterfly valves.
Different ceramics materials are suitable for different applications.
3 - Stainless steel body materials are suitable for corrosive medium.
4 - Ceramics are nearly universally chemical resistant.
5 - Much longer service life than any other common butterfly valves, and save maintenance cost for customers, due to high hardness and excellent corrosion resistance of high performance ceramics.
6 - Pneumatic operation ceramic butterfly valves are easy to realize the remote control or the local control.
7 - It has the inherent characteristic of the adjustable performance of butterfly valve.
Technical Specification:
1) Size Range: NPS2~NPS12, DN50~DN300
2) Pressure Range: PN6-PN25
3) Applicable Temperature: 0~200℃
4) Connection Type: Flange, wafer 5) Sealing material: engineering ceramics
6) Body material: WCB, CF8, CF8M, CF3, CF3M
7) Pressure test: GB/T13927, API598
8) Face to Face: GB/T12221, API609, ASME B16.10
9) Valve body : GB/T12224, ASME B16.34
Operating Mode: Pneumatic
Company Contact:
- Phone: 86-371-55019379
- Address: No.76 Cuizhu Road, High-Tech Development Zone, Zhengzhou City, Henan, China , Zhengzhou , Henan , China
- Email:
- Website: https://www.free-valve.com/
Published date: November 25, 2025
- Business Description: Zhengzhou Free Fluid Control Technology Co.,Ltd is leading designer and supplier of high-quality industrial valves, for industries ranging from Coal Washing Plant ,Power Plant ,Alumina Refinery, Steel Plant,Petro-Chemical, WasteWater,Potable Water among others for global markets.
We provide comprehensive “Fluid Control Solutions” for customers.
Our Products:
- Pneumatic Ceramic Rotating Gate Valve
- Inflatable Seat Dome Valve
- Stainless Steel Ceramic Lined Ball Valve
- Pneumatic Full Ceramic Lined Double Disc Gate Valve
- Stainless Steel Ceramic Lined Butterfly Valve
