Sanitary Butterfly Valves With Butt Weld Ends Pull Handle - USA

price: 111.00 Dollar US$

Application:

AV-1MW series is a manual type sanitary butterfly valve with butt-welded / butt- welded ends, which is widely used in process piping systems for isolation and control.

AV-1MW butterfly valve operates manually.

Specification:

Reference No.

: AV-1MW-P

Sizes available: 1/2" to 12" (1/2", 3/4", 1”, 1 1/2", 2", 2 1/2", 3", 4", 5", 6", 8", 10", 12")

DN15 - DN300 (DN15, DN20, DN25, DN40, DN50, DN65, DN80, DN100, DN125, DN150, DN200, DN250, DN300)

Material: Valve body and disc material can be AISI 304 or AISI 316L, 304L and 316 materials are available upon request.

Max.

working pressure: 145psi (10bar) for DN25/1"-DN100/4"; 116psi (8bar) for DN125/5"-DN150/6"; 73psi (5bar) for DN200/8"-DN300/12".

Temperature range: 14 ~ 248°F (-10 ~ 120°C) with EPDM seat, -58 ~ 356°F (-50 ~ +180°C) with VMQ (Silicone) seat.

End connections: butt-welded / butt-welded.

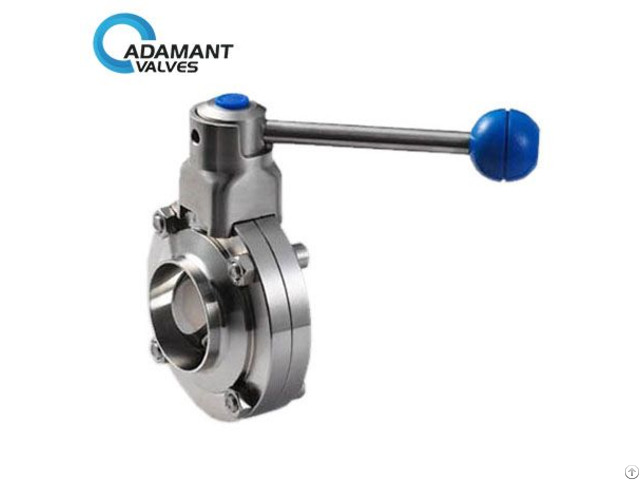

Operation: 4-position Pull handle as the product photo shows

Surface treatment: Ra 16 ~ 32µin (0.4 ~ 0.8µm), Ra 32µin is the default.

Company Contact:

Posted By: Adamant Sanitary Valves

Phone: 9494078897

Address: 360 Goddard, Irvine, Irvine , CA , USA

Email:

Website: https://www.adamantvalves.com

Published date: November 8, 2016

Business Description: Adamant Valves design and manufacture a wide range of stainless steel sanitary valves and fittings such as sanitary butterfly valves, sanitary ball valves, sanitary check valves, sanitary sight glasses, and sanitary unions, etc.

They are widely used in the dairy, food, beverage, pharmaceutical, cosmetic, and other industrial markets.
