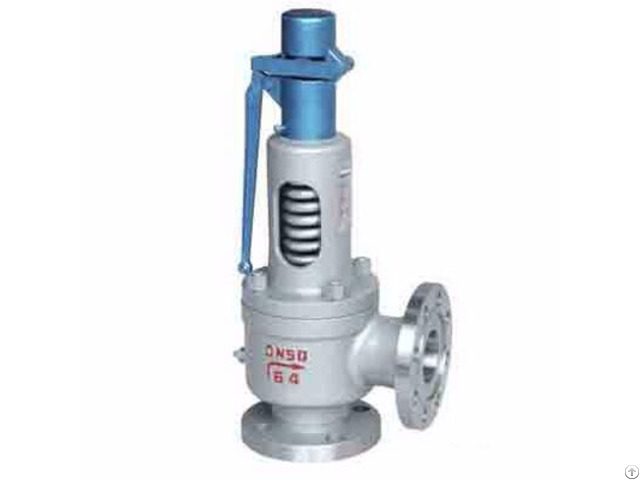

A48h Spring Loaded Full Lift Safety Valve - China

China Spring Loaded Full Lift Safety Valve Manufacturer Shinjo Supplies A48H Spring Loaded Full Lift Safety Valve, 150-900LB, PN16-PN100, ASME, API 526 - Valve Design: ASME, API 526, GB/T 12243-2005

Material: A216-WCB, A216-WCC, A217-WC6, A217-WC9

Pressure Grade: 150Lb, 300Lb, 600Lb, 900Lb, PN16~PN100

Seal Test Pressure: 0.9PS

Discharge Pressure: ≤1.03PS

Back Seat Pressure: ≥0.9PS

Lift Height: ≥(1/4)do FULL LIFT

Coefficient of Discharge: G-0.75

Connection Flange: ASME B16.5, GB/T 9113.1/2-2000Codes and Standard: United States:

ASME (American Society of Mechanical Engineers) Boiler & Pressure Vessel Code, Section I

ASME (American Society of Mechanical Engineers) Boiler & Pressure Vessel Code, Section VIII, Division 1

API (American Petroleum Institute) Recommended Practice 520 and API Standard 526, API Standard 2000 (low pressure - Storage tank) European Union:

European standard steam boiler safety valveISO 4126 (harmonized with European Union directives) [5]

EN 764-7 (former CEN standard, harmonized with European Union directives, replaced with EN ISO 4126-1)

AD Merkblatt (German)

PED 97/23/EC (Pressure Equipment Directive - European Union) China:

JB/T308-2004 GB/T12241-2005 GB/T12243-2005
