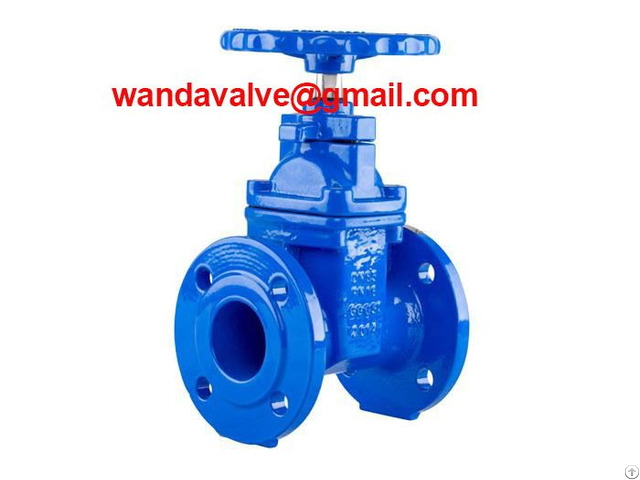

As2638 Resilient Gate Valve - China
price: 30.00 Dollar US$
Specification Details Design Std: AS2638.2
Size: DN50--DN600
Pressure Rating: PN16
Seat: NBR, EPDM, VITON, PTFE, NEOPRENE
Face to Face: AS2638.1 & ANSI B16.10
Pressure Testing: DIN EN593/DIN EN12266-1
Ductile iron body and bonnet for high strength and impact resistance - Ductile iron gate fully encapsulated in EPDM rubber to ensure tight seal
Flange Ends: AS4087 & AS2129 Table E/D
Working temperature: -10 to +80°C
Epoxy Coated To AS4158 300um minimum DFT
Valve Description Resilient seated ductile iron gate valve is manually operated by a non rising stem handwheel operation made in accordance with AS2638.2, used in waste water and water treatment industries.
Company Contact:
- Posted By: Zhejiang Wanda Valve Co Limited
- Phone: +8657181370072
- Address: Gaoxin Avenue, Yongqiang Rd. Longwan Area, Wenzhou, China, Wenzhou , Zhejiang , China
- Email:
Published date: December 1, 2017
- Business Description: Wandavalve is one of the most important manufacturers of water valves in the China with experience dating back over 20 years.
Its success story began in 1994 when Steven Li founded a small workshop in Wenzhou, China.
Presently, the scope of Wanda Valve supply products including following(but not limited below): -
Wafer butterfly valve, Lug Butterfly valve, Flanged Butterfly valve
Resilient seat gate valve, Metal seat gate valve
Cast Iron Ball Valve, Cast Steel Ball valve, Stainless Steel Ball Valve
Cast Iron Globe Valve, Cast Steel Globe valve, Stainless Steel Globe Valve
Cast Iron Check Valve, Cast Steel Check valve, Stainless Steel Check Valve
DIN Y Strainer, ANSI Y Strainer
Our products are widely used in the irrigation, potable water and waste water systems and infrastructure equipment fields, oil gas, chemicpetrol etc.
