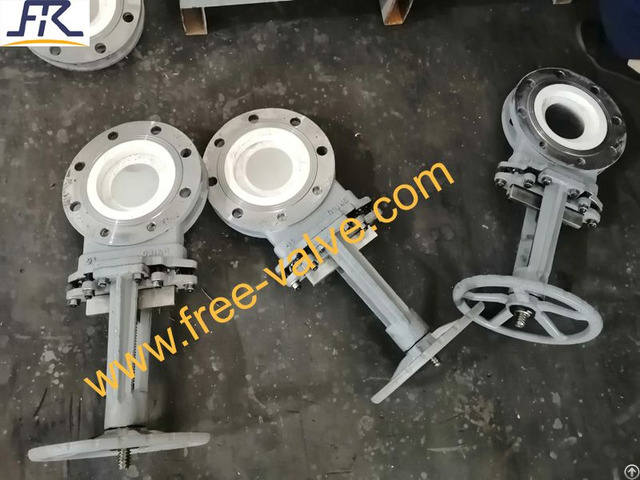

Carbon Steel Ceramic Lined Knife Gate Valve - China
price: 600.00 Dollar US$
Manual operated carbon steel ceramic lined knife gate valves are known as slurry gate valves.
Its have simple structure and can cut off medium which contains solid particles and fibers, suitable for some very hard particles or serious erosive mediums.
They are installed to replace general metal seated knife gate valves which will be washed out easily
Features:
1) Short length of structure, saving material, lightweight, easy to install, small space occupation.
2) Seat is designed with single seat type to prevent sticking and accumulation of ash residue.
3) The sealing surface is made of structure ceramic with abrasion resistance and long service life.
4)Stainless Steel valve body material suitable for any corrosive medium Technical Specification
1) Size Range: NPS2~NPS24, DN50~DN600
2) Pressure Range: Class 150 /PN6 /PN10
3) Applicable Temperature: 0~200℃
4) Connection Type: Flange, wafer 5) Sealing material: engineering ceramics
6) Body Material: WCB
7) Pressure test: GB/T13927, API598
8) Face to Face: GB/T12221, ASME B16.10
9) Valve body : GB/T12224, ASME B16.34
10)Operating Mode: Manual Application
FREE-VALVE brand carbon steel ceramic lined knife gate valves are suitable for the conveying system with liquid-solid or gas -solid two-phrase medium, such as coal -water slurry, ash, mine residue and coal residue in coal washing plant, iron & steel plant or ash conveying system of power plant, paper pulp in paper industry, sewage and slu
Company Contact:
- Phone: 86-371-55019379
- Address: No.76 Cuizhu Road, High-Tech Development Zone, Zhengzhou City, Henan, China , Zhengzhou , Henan , China
- Email:
- Website: https://www.free-valve.com/
Published date: January 2, 2024
- Business Description: Zhengzhou Free Fluid Control Technology Co.,Ltd is leading designer and supplier of high-quality industrial valves, for industries ranging from Coal Washing Plant ,Power Plant ,Alumina Refinery, Steel Plant,Petro-Chemical, WasteWater,Potable Water among others for global markets.
We provide comprehensive “Fluid Control Solutions” for customers.
Our Products:
- Pneumatic Ceramic Rotating Gate Valve
- Inflatable Seat Dome Valve
- Stainless Steel Ceramic Lined Ball Valve
- Pneumatic Full Ceramic Lined Double Disc Gate Valve
- Stainless Steel Ceramic Lined Butterfly Valve
