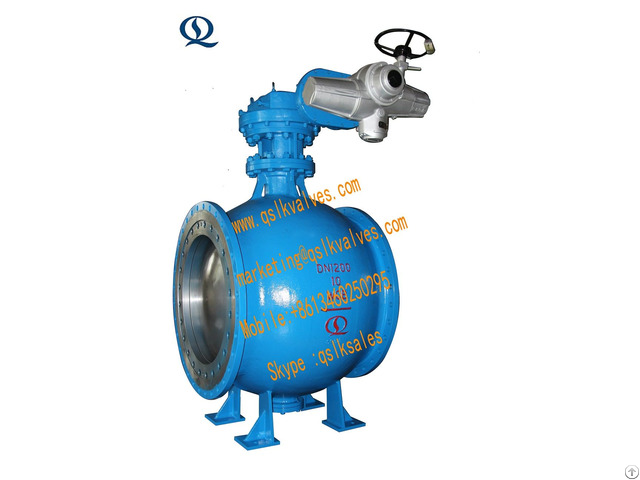

Dn1200 Motorized C Type Ball Valve - China

DN1200 Motorized C type ball valve is a high performance ball valve designed for any industrial working condition, which solves the difficulties of transporting of "solid-water" two phase medium.

It is widely applied fly ash transportation at cloth bag type dust collection system in the iron and steel industry.

BENEFITS 1 - With straight through type valve body, this valve can keep the fluid flow by linear when the valve fully opened with out any blockage, so it reduced less energy loss compared with other valves.

2 - Easy to operate: As the valve disc moved away from valve seat without any contact, so it has smaller starting torque compared with O type ball valve and easy to operate.

3 - Because of double eccentric structure design, the segment ball valve is perfectly sealed and can be closed tightly .

4 - When the valve is closed, the welding force is able to remove the foreign materials, therefore it has anti-scaling performance and prevent blockage dust removing device.

6 - The weight is light compare to O type ball valve, so it reduced the cost of maintenance and man power.

7 - Special hard alloy material can be spraied to keep the valve have anti-abrasive performance .

SPECIFICATION: 1 - Size: DN1200 2 Pressure: PN1.0MPa 3 - Material: WCB 4 - Sealing material: Hard Alloy 5 - Connection method: Flange type 6 - Driving method : Electric Actuator 7 - Design standard : GB/T26146-2010 APPLICATION: Power heat Industry Circulating Water Industry Power Industry Alumina Industry
