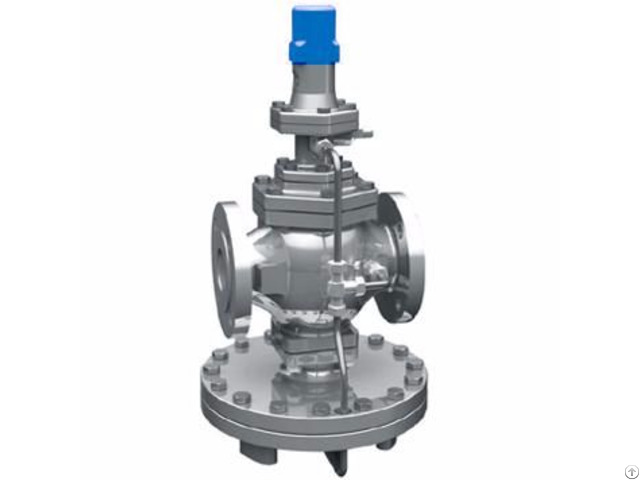

Dp25 Wcb Steam Pressure Reducing Valve Prv 2 5 Mpa - China
price: contact company for price
China WCB Steam Pressure Reducing Valve Manufacturer Shinjo Supplies WCB Steam Pressure Reducing Valve, DP25, 2.5 Mpa, Super High Sensitivity.
Performance:
Nominal Pressure: 2.5 MPa.
Casing Body Test Pressure: 3.75 MPa.
Sealing Test Presure: 2.5 MPa.
Max.
nlet presure: 2.5 MPa.
Outlet pressure range: 0.02 - 1.6 MPa.
Flow Factor(Cv):
DN: 15, 20, 25, 32, 40, 50.
Cv: 2.9, 5.3, 8.6, 11.6, 16.5, 29.1 - Parts & Material:
Body, Bonnet: GG-20, WCB, 304 S.S.
Seat: 410 S.S.
Plug: 410 S.S.
Diaphragm: 321 S.S.
Adjustable Spring: UNS G92600.
Company Contact:
- Posted By: Shanghai Shinjo Valve Co., Ltd.
- Phone: 86-21 5620 6641
- Address: No 150, Honxing Road, Shanghai, China., Shanghai , Shanghai , China
- Email:
- Website: http://www.shinjovalve.com/
Published date: February 5, 2017
- Business Description: Shanghai Shinjo Valve Manufacturer is specialized in producing various industrial valves: Ball Valves, Check Valves, Gate Valves, Globe Valves, Plug Valves, Butterfly Valves, Safety Valves, Hydraulic Control Valves, Control Valves, Pressure Reducing Valves, Needle Valves, Cast Steel Valves, Forged Steel Valves, Balance Valves, Diaphragm Valves, Blind Valves, Lined Valves Series and types of Pumps.
Products are widely applied in oil gas, chemical, electric power, shipping, mining, water treatment industrial system etc.
