Imd Fluoroplastic Magnetic Pumps - China

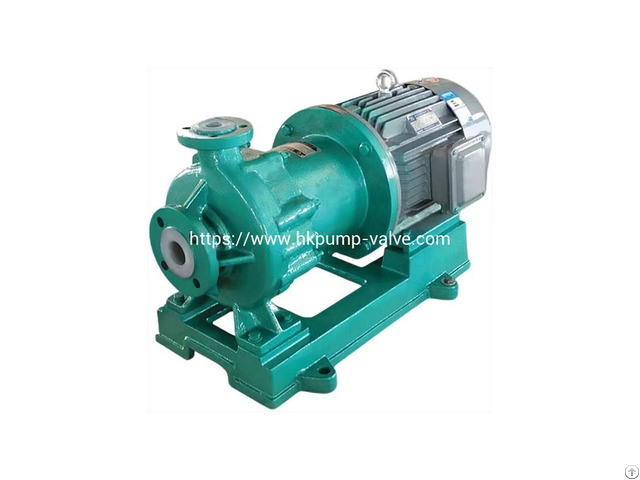

Brief introduction of IMD PTFE magnetic pump

The main parts of IMD PTFE magnetic pump are lined with steel F46, the pump body is of high strength, the high performance magnetic material “NdFeB” is used as inner and outer magnets, and the isolation sleeve is made of non-metallic material, which greatly reduces the magnetic vortex loss, and it can convey the strong corrosive medium with high concentration and density more than 1.9t/m3 - The structure is designed as back-pulling type, and the external and installation dimensions of IMD fluoroplastic magnetic pump are designed and manufactured in accordance with international standards.

All specifications are of direct motor connection type, which is supported by the middle bracket, compact structure and easy disassembly.

When overhauling and replacing the parts, the core parts can be pumped out directly from the back without disassembling the pipeline and base, which saves the maintenance and cost of working hours.

IMD fluorine plastic magnetic pump drive form is magnetic indirect contactless drive, the inner and outer magnets are completely isolated by isolation sleeve, so that the pump cavity is in a completely closed state, resistant to strong corrosion, no leakage, the pump casing has a foot, the pump and the motor are fixed in a common base, with good stability and lower running noise and vibration.

The pump and motor are fixed on a common base with good stability and lower running noise and vibration.

Especially suitable for conveying strong acid and alkali, strong oxidizing, flammable and explosive, toxic, volatile media.

Completely prevent dripping.

Leakage phenomenon is completely prevented, and there is no contamination of the use of the site and other advantages.

Parameters of IMD PTFE magnetic pump

Product alias: IMD four fluorine magnetic pump

Main material: fluorine plastic

Flow range: 2-180m³/h

Head range: 12-62m

Temperature range: -20°-120°.

Power range: 2.2-18.5Kw
