Multi-turn Electric Actuators

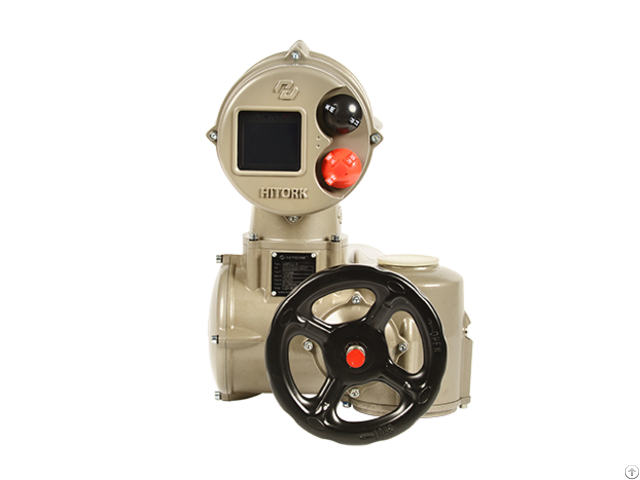

HITORK2.0 IoT HKM.

2 multi-turn electric actuator can be used to control a variety of valves and other similar products, such as gate valves, globe valves, regulating valves, etc.

which are widely used in power plant, petrochemical, water treatment, shipping, papermaking and other industries.

Product Introduction

>Light weight, small volume and high strength.

The housing is made of special aluminum alloy.

>Absolute encoder for travel and torque, Non-intrusive setting—no cover removal required.

>Connect in accordance with ISO5210 standard.

>IP67(IP68 Option)

>Adaptive for bus, Bluetooth, Internet of things

>Plug-in type dual panel structure, double sealing, convenient wiring maintenance.

Technical Data

Model On-off Modulating Speed

@50HZ

rpm Shaft

diameter

mm Rated

power

W Rated current(A)

@3PH AC380V 50Hz Mounting

Flange

ISO5210 Weight

Kg Rated

Torque

N.

m Rated

Torque

N.

m Modulating

Torque

N.

m HKM03.2 30 30 15 32 Ф28 370 1.03 F10 27

HKM03.2 30 30 15 64 Ф28 370 1.58 F10 27

HKM03.2 18 18 9 128 Ф28 370 2.18 F10 27

HKM05.2 50 50 25 32 Ф28 370 1.22 F10 27

HKM05.2 50 50 25 64 Ф28 370 1.72 F10 27

HKM05.2 30 30 15 128 Ф28 370 2.31 F10 27

HKM10.2 100 100 50 32 Ф28 750 2.18 F10 29

HKM10.2 100 100 50 64 Ф28 750 2.97 F10 29

HKM10.2 60 60 30 128 Ф28 750 3.66 F10 29

HKM20.2 200 200 100 32 Ф28 1100 3.32 F10 31

HKM20.2 200 200 100 64 Ф28 1100 4.85 F10 31

HKM30.2 300 300 150 32 Ф36 1800 4.46 F14 41

HKM30.2 300 300 150 64 Ф36 1800 6.79 F14 41

HKM30.2 180 180 90 128 Ф36 1800 7.96 F14 41

HKM45.2 450 450 225 32 Ф36 2200 6.48 F14 43

HKM45.2 450 450 225 64 Ф36 2200 10.65 F14 43

HKM45.2 270 270 135 128 Ф36 2200 14.92 F14 43

HKM60.2 600 32 Ф36 2800 10.9 F14 45

HKM60.2 600 64 Ф36 2800 16.45 F14 45

HKM80.2 800 800 400 32 Ф44 4000 12.38 F16 86

HKM80.2 800 800 400 64 Ф44 4000 23.46 F16 86

HKM80.2 480 480 240 128 Ф44 4000 32.77 F16 86

HKM100.2 1000 1000 500 32 Ф60 5000 30.1 F16 88

HKM100.2 1000 1000 500 64 Ф60 5000 38.9 F16 88

HKM100.2 600 600 300 128 Ф60 5000 44.6 F16 88

HKM120.2 1200 32 Ф60 6000 38.33 F25 92

HKM120.2 1200 64 Ф60 6000 51.62 F25 92

Other parameters to be set according to the real working conditions
