Pneumatic Double Disc Type Ceramic Gate Valve - China

price: 300.00 Dollar US$

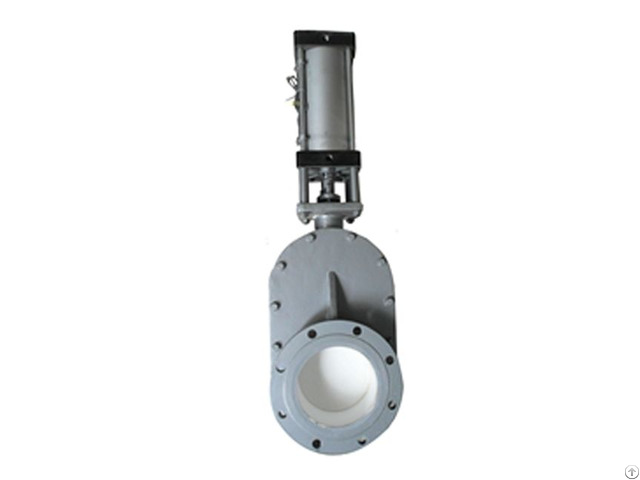

Pneumatic Double Disc Type Ceramic Gate Valve

Products Photos Catalog Pneumatic Double Disc Photos Catalog

Pneumatic Ceramic Double Plate Gate Valve

Particularly offered for solid-gas medium, the pneumatic ceramic double disc gate valve takes engineering ceramic as the main sealing material .

Benefits

1 - The sealing surface of the valve is made of toughened ceramics with abrasion resistance and long service life.

2 - Two-side sealing can realized due to double plate structure of the pneumatic ceramic double disc gate valve.

3 - In the process of opening and closing, the valve plate can rotate automatically, which leads to the grinding and polishing between the two sealing surface of the ceramic double plate gate valve.

4 - There is a residue outlet designed for ceramic double disc gate valve, being used to conduct dust blowing periodically .

Technical Specification

Size : 2”~12” DN50~DN300

Pressure: Class 150 PN1.0-PN1.6MPa

Body material : WCB(A105, CF8(304), etc.

Sealing material : Toughened engineering ceramic

Connection method : Flange type

Drive method: Pneumatic

Applications

Power plantAsh transport system


Company Contact:


  • Phone: 0086-13393714769

  • Address: NO.28 Huagong Road,High and New Technology Zone, Zhengzhou , Henan , China

  • Email: Email


Published date: March 1, 2017

  • Business Description: Henan Quanshun Flow Control Science & Technology Co., Ltd is a special high-tech enterprise engaged in manufacturing flow control equipment including: semi-ball valve , rotating ball valve , ball valve, control valve, butterfly valve, gate valve, check valve and others.

    Our equipment can be used in poor working condition with strict requirement on corrosion resistance, abrasion resistance and erosion resistance of the product.
