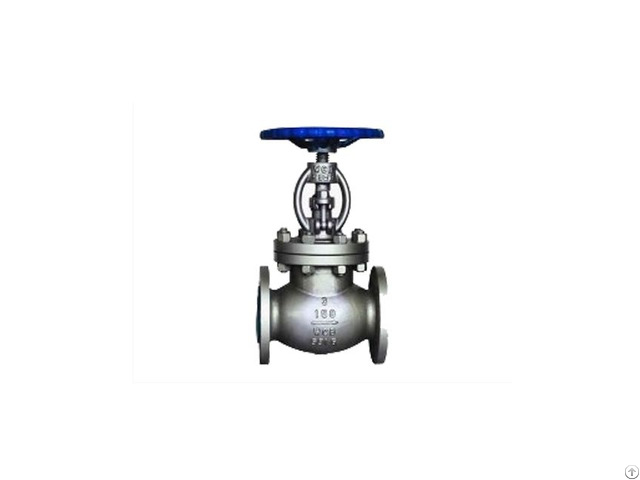

Straight Through Globe Valve - China
price: 150.00 Dollar US$
Globe valve is a type of adopts a straight-through valve body and controls the media flow by the disc moves up or down.
This straight through stop valve is widely used for control of water, steam, oil and other corrosive media.
Benefits
1 - Valve bonnet of this stop valve is equipped with an upper seal seat, perfectly meeting the requirements of API and BS standards;
2 - A stud, serving as the middle connection bolt of the valve makes repair and maintenance much easier;
3 - The valve seat is connected by screw thread in which way the replacement and maintenance is much easier;
4 - Sealed by premium packing, this industrial valve is highly leakage-proof.
Technical specification
Size: 2”~16”
Pressure: Class 150 ~ Class 2500
Body material: WCB(A105), WC6, WC9, LCB, CF8(304), CF8M(316), CF3(304L), CF3M (316L) etc
Sealing material: Rubber, PTFE, hard alloy etc.
Connection method: Flange, welding
Driving method: Manual, electric, pneumatic, bevel gear
Design standards: ASME B16.34, BS1873
Application
Chemical industry
Water Works
Power station
Company Contact:
- Phone: +86-18003823620
- Address: No.28 , Huagong Road, Zhengzhou , Henan , China
- Email:
- Website: http://www.qslk.cn
Published date: September 29, 2018 - Modified date: October 16, 2018
- Business Description: Henan Quanshun Flow Control Science & Technology Co., Ltd is a special high-tech enterprise engaged in manufacturing flow control equipment including: semi-ball valve , rotating ball valve , ball valve, control valve, butterfly valve, gate valve, check valve and others.
Our equipment can be used in poor working condition with strict requirement on corrosion resistance, abrasion resistance and erosion resistance of the product.
Our Products:
- bidirectional rotary ball valve
- eccentric semi ball valve
- ball segment valve
- slurry valve
- dumping valve
