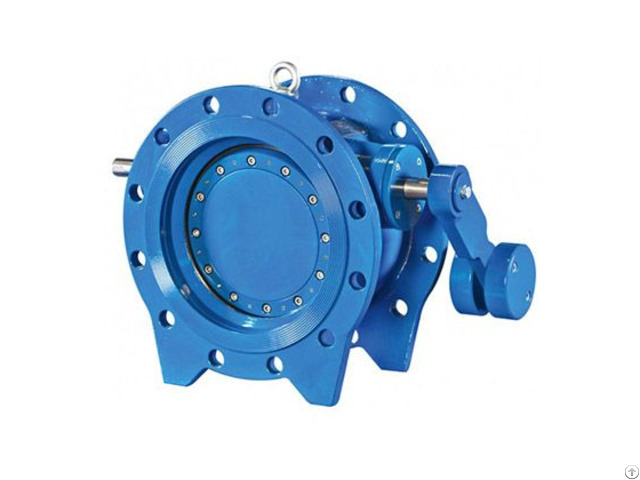

Tilting Check Valve - China

Valve Size: DN200-DN1200

Pressure Rating: PN10/16/25 -

Design & Manufacture: BS EN 12334

Face to Face Dimension: BSEN558-2 Series 14; ISO5752-2 Series 14

Ends Dimension: ISO7005-2 PN10/16/25; JIS 10K; BS10 TABLE D/E; ANSI B16.1.

Test & Inspection: API598/EN12266

Features:

Leflow’s Tilting disc check valve is Double Eccentric structure, normally with counterweight and hydraulic damper.

Tilting Disk Check Valves, also called butterfly check valve, is a cost-effective valve with a unique design that provides excellent tightness and minimizes water-hammering.

It is designed for drinking water and other neutral liquids, and commonly installed in pumping applications to prevent backflow in the system.

The opening pressure will be very low.

It is mainly used for water industry, irrigation, municipal engineering, drinking water engineering and etc

The key benefits are as following:

1 - Ensures ZERO leak with the “T” section ring fixed to the outer diameter of the disc fully facing the seat surface inside the body perimeter made of stainless steel welding.

2 - The sealing that can be made of EPDM/NBR/VITON, which can be replaced easily on field conditions.

3 - Inner and outer surfaces of the valve is coated with fusion bonded epoxy.

4 - Low toqure can be achieved by decreasing the friction through self lubricating bushings.

5 - High impact resistance.

6 - Pressure loss is at minimum level by double shaft design.

7 - Counter weight allows installation of both horizontal and vertical pipes on the right and left sides of the mill, counterweight, and lever on both sides of the check valve.

8 - The disc opens depending on the flow rate and moves freely depending on the flow.

9 - With the o-rings on the bearing bushings, disc pin holes are protected against corrosion (Dry shaft).

Leflow’s tilting check valves are designed to meet the stringent demands of industrial fluid handling applications, providing reliable flow control and protection against backflow.

With their robust construction, efficient operation, and versatility, Leflow tilting check valves are a trusted choice for industries requiring secure and efficient flow management solutions.
