Soft Annealed Black Binding Wire - China

Black annealed binding wire BWG19 for construction, soft annealed black wire gauge #14, 16 & 18 also popular for binding in construction.

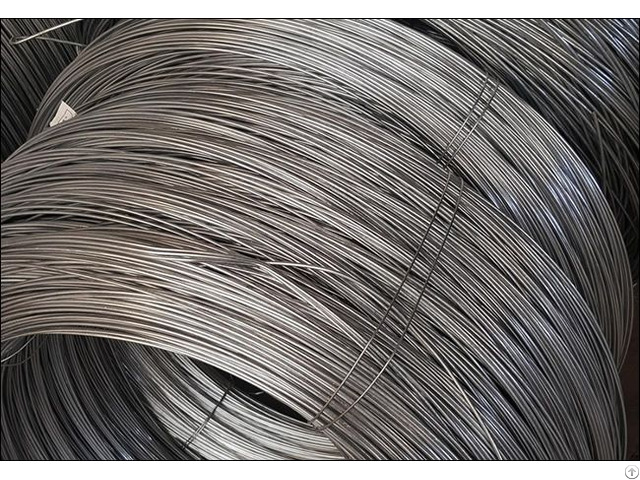

Soft Annealed Black Iron Binding Wire in Coils, Cut Length, U Type, Twisted Single and Double Loop

Binding wire of black annealed material offer better tensile strength and easier tying compared with galvanized wires.

Black annealed iron binding wire is also called black tying wire.

The annealed black binding / tying wire features excellent flexibility and softness going through the process of oxygen free annealing.

Standard follows: DIN, GB, ISO, JIS, BA, ANSI, SGS, etc.

Forms of Supply Black annealed tying wire comes in the following forms:

Small coil wire;

Big coil wire;

Straight cut wire;

U type wire;

Quick link looped wire.

Specification List Comparison of Wire Gauge of Different Standards Binding Wire Gauge No ASWG (America standard Wire gauge ) BWG (Birmingham wire Gauge ISWG (Imperial standard wire gauge)

8# 4.114mm 4.191mm 4.064mm

9# 3.766mm 3.759mm 3.658mm

10# 3.429mm 3.403mm 3.251mm

11# 3.06mm 3.048mm 2.946mm

12# 2.679mm 2.768mm 2.642mm

13# 2.324mm 2.413mm 2.337mm

14# 2.032mm 2.108mm 2.032mm

15# 1.829mm 1.829mm 1.829mm

16# 1.578mm 1.651mm 1.626mm

17# 1.371mm 1.473mm 1.422mm

18# 1.206mm 1.244mm 1.219mm

19# 1.041mm 1.066mm 1.016mm

20# 0.883mm 0.883mm 0.883mm

21# 0.806mm 0.813mm 0.813mm

22# 0.726mm 0.711mm 0.711mm

Soft Quality Black Annealed Wire in Coils for Construction Binding Uses Firstlin exports constructional binding wire in black, soft, annealed surface treatment according to DIN 59110 and other international standards.

Used in binding and tieing, mainly manual tying and twisting.

Normal tensile strength ranges from 350 to 550 N/mm2 - Custom specifications available.

Small coils (for manual tying mainly) and big coils (designed for machine binding) are both supplied to meet specific work conditions.

Material: Steel wire (prime / first choice).

Constructional Black Rebar Tying Wire supplied popularly in 21BWG, 16BWG, 18Guage and 3.65mm, 3.15mm wire diamter.

Black Annealed U Type Wire Ties ( Wire Length: 20-60cm) Processed from fine low carbon black wire for daily bundling and rebar tying.

Material: Low carbom Q235/Q195

Wire Diameter: 21Ga-14Ga BWG

Length: 20-60cm U type soft iron wire ties for building material bundling up.

Single and Double Loop Bale Ties in Mild Steel, Soft Annealed Quality Loop ties and twisted ties are binding wire for quick tying and packing.

Soft annealed black single and double looped binding wire is used in cotton baling, daily packing and construction binding.

It is easy to operate simply and directly and using of it can enhance the working efficiency, reduce pollution.

PVC coating surface treatment available.

Manual Baling Tie Wire

Cotton Bale Binding Wire of Double Loop Tying Pattern, in 21 Gauge to 14 Gauge BWG with a length ranges of 4 to 16 inch Big Coil Black Iron Baling Wire on Carriers for Automatic Horizontal Balers Firstlin supplies big coils annealed binding wire of maximum 2203LB per coil.

With advanced wire rewinding machine to layout the small coil wire and winding it again into big coils with different inner diameter.

Annealed big coil binding wire is mainly used as automatic binding industrial bale tie wire, etc.

Cut to Length Wire Ties (1.10mm, 2.0mm, 2.50mm)

Wire Diameter: 0.4-4.0mm

Length 5cm-500cm, custom sizes acceptable.

Garden Tying Wire

Soft Annealed Black Wire Straightened and Cut to Sizes, used for securing trees, vines and creepers, used as plant supports and trellises support Standard Chemical Composition and Physical Property of Black Annealed Iron Wire Quality BS4482

Tested for sample material, quality reference only.

Chemical Composition

C Si Mn P S

0.06 0.2 0.4 0.025 0.03

Physical Property

Rel Y.

S(Mpa) Rm T.

S(Mpa) AEL(%) 180 - C.B.T d=0

200 350 32% Confirm

Packing:

Supplied in bundles of 25kg per bundle with inside plastic film, then in woven plastic bags.

1.57mm x 1.42kg tie wire belt coils available.

Belt coil size 50mm (inside spool diameter of coil) x 115mm (outside diameter of rolled coil) and coil thickness 35mm (50X115X35).

Packing and Weight List Soft Black Annealed Binding Wire

Wire Diameter Strength Packing Weight

0.16mm-0.6mm 30-40kg Coils or spools 2-100kgs

0.6mm-5.0mm 30-40kg Big package 100-800kgs

0.16mm-0.6mm 60-70kg Coils or spools 2-100kgs

0.6mm-5.0mm 60-70kg Big package 100-800kgs
