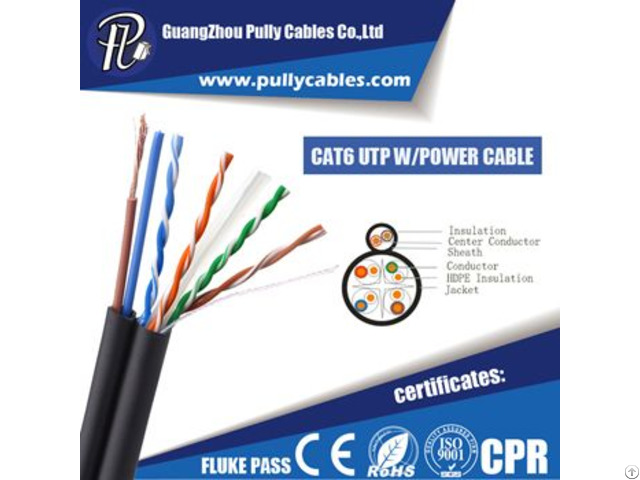

Cat6 Utp With Power Cable - China

Cat6 utp with power cable cat6 is a standardized twisted pair cable used specifically in gigabit(gb) ethernet networks at a higher transmission frequency of 250mhz, and its feature is more stringent specifications for crosstalk and system noise .

they apply to 10 base-t, 100base-tx&1000base-t ethernet and 10gbase-t ethernet .

specifications:

conductor solid bare copper conductor dia.

23awg insulation pe

insulation dia.

0.98±0.02mm

jacket pvc

power cable 0.5mm²/0.75mm²

jacket dia.

6.8*12mm

number of shielded pairs

colour code pair 1 blue-white / blue colour code pair 2 orange-white / orange colour code pair 3 green-white / green colour code pair 4 brown-white / brown electrical characteristics：

high frequency (at 20°)

type attenuation next ps next ps acr ps elfext (db) elefxt (db ) return loss

1 2.0 74.3 72.3 70.3 64.8 67.8 20

4 3.8 65.3 63.3 59.5 52.8 55.8 23

8 5.3 60.8 58.8 53.5 46.7 49.7 24.5

10 6 59.3 57.3 51.3 44.8 47.8 25

16 7.6 56.2 54.2 46.6 40.7 43.7 25

20 8.5 55 53 44 39 42 25

25 9.5 53 51 42 37 40 24

31.2 10.7 51.9 49.9 39.2 34.9 37.9 23.6

62.5 15.4 47.4 45.4 30 28.9 31.9 21.5

100 19.8 44.3 42.3 22.5 24.8 27.8 20.1

200 29 39.8 37.8 8.8 18.8 21.8 18

250 32.8 38.3 36.3 3.5 16.8 19.8 17.3

characteristic impedance: 100±15Ω

conductor resistance ≤9.38Ω/100m

insulation resistance: 100mΩ

mutual capacitance: <5.6nf/100m

resistance unbalance: 5%max

capacitance unbalance: 330pf/100m
